- Class-D amplifier module for installation inside the VIBE18-SUB Mk2 speakers
- All you need is a screwdriver and 5 minutes of your time to make the transformation, no technical skills required!
- High output power: 800Wrms @ 8ohm ~ 1200Wrms @ 4ohm
- Balanced / unbalanced line input/output (XLR) with volume control.
- 90-250Hz adjustable hi-cut filter for use in active subwoofers.
- Speakon output for optional passive 8ohm cabinet. (preferable same model)
- IEC input mains connector with integrated switch.
-
AVM Manual Size: (2.86 MB) AVM Manual EN / FR / NL / DE / ES / PT AVM-3 PDF leaflet Deutsch Size: (876.74 KB) PDF_LEAFLET_AVM-3_B00242_de.pdf AVM-3 PDF leaflet English Size: (876.63 KB) PDF_LEAFLET_AVM-3_B00242_en.pdf AVM-3 PDF leaflet Français Size: (878.06 KB) PDF_LEAFLET_AVM-3_B00242_fr.pdf AVM-3 PDF leaflet Nederlands Size: (876.26 KB) PDF_LEAFLET_AVM-3_B00242_nl.pdf

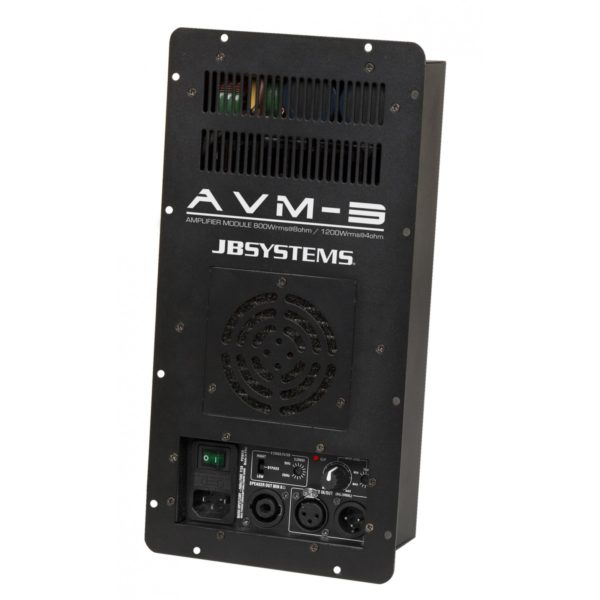

AVM-3
Application | DJ & Club, Stage & Rental |
---|---|
Series | VIBE |
Dimensions (cm) | 32 x 16 x 7.8 cm |
Weight (kg) | 2.79 |
Color | black |
Powerinput | AC 240V, 50Hz |
Energy Label | No |
Power consumption W | 1550 |
Display | none |
IP rating | indoor |
amplifier class | D |
min. frequency (Hz) | 20 |
max. frequency (Hz) | 20000 |
frequency range | … Hz – … Hz |
S/N ratio (> dB) | 92 |
damping factor (>...) | 350 |
Wrms 4Ω stereo, per channel | 1200 |
Wrms 8Ω stereo, per channel | 800 |
functions | limiter |
input | 3 pin XLR, IEC |
output | 3 pin XLR, speakon |
Brand | JB SYSTEMS |
EANCode | 5420025602426 |
