Catégories : , , Brand:

BT-626/FRA

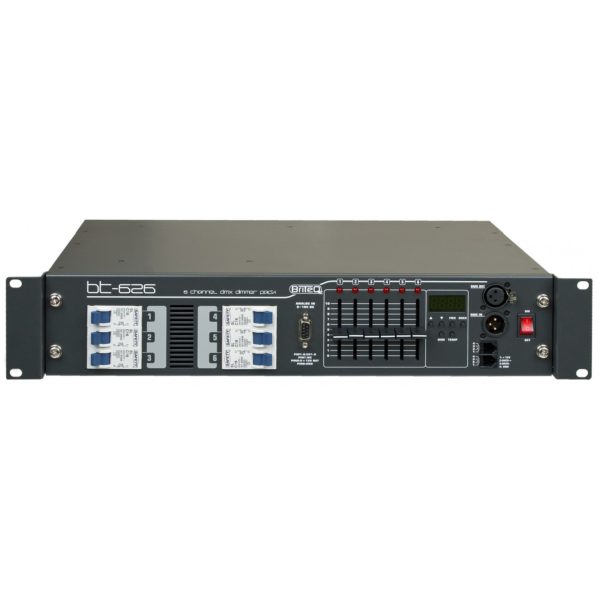

Professional 6 channel Dimmer / Switch pack for 19″ rack mounting
SKUB04634
EANCODE5420025646345

Share it:
  • Professional 6 channel Dimmer / Switch pack for 19″ rack mounting
  • Max load 16A (3680W) per channel with automatic 16A circuit breakers
  • Suitable for both inductive and resistive loads
  • Can be used to dim incandescent lamps, halogen lamps, low volt halogen lamps with ballast and dimmable LED-lamps (load must be >100W).
  • Outputs equipped with French mains sockets (see barcode sticker)
  • DMX (3p-XLR + RJ11) and analog 0/10V (dB9) inputs
  • Block or individual channel addressing (soft patch)
  • Switch/dimmer mode can be set individually for all channels
  • Control faders 0-100% for all channels (no external controller needed)
  • Preheat control to extend lamp life: 0-6%
  • Automatic phase/frequency tracking (45Hz to 63Hz) for improved dimming under difficult conditions.
  • LED display for monitoring of all functions, including internal temperature.
  • Mains input (200 ~ 240Vac):
    • 3-phase/4wire: total max. load = 22kW
    • Single phase/2wire: total max. load = 9,6kW
  • Intelligent thermo protection with automatic fan control.
  • Dimensions: 483x88x312mm (19″/2U)
  • Weight: 8kg
  • View FileBT-626/FRA Manual   Size: (1.61 MB)
    View FileBT-626/FRA EC declaration   Size: (569.29 KB)
    View FileBT-626/FRA PDF leaflet Deutsch   Size: (730.22 KB) PDF_LEAFLET_BT-626/FRA_04634_de.pdf
    View FileBT-626/FRA PDF leaflet English   Size: (729.33 KB) PDF_LEAFLET_BT-626/FRA_04634_en.pdf
    View FileBT-626/FRA PDF leaflet Français   Size: (731.11 KB) PDF_LEAFLET_BT-626/FRA_04634_fr.pdf
    View FileBT-626/FRA PDF leaflet Nederlands   Size: (729.78 KB) PDF_LEAFLET_BT-626/FRA_04634_nl.pdf
Application

DJ & Club, Stage & Rental, Theatre

Dimensions (cm)

48.3 x 8.8 x 31.2 cm

Weight (kg)

8.5

Powerinput

AC 240V, 50Hz

Energy Label

No

Color

black

Brand

BRITEQ

EANCode

5420025646345
