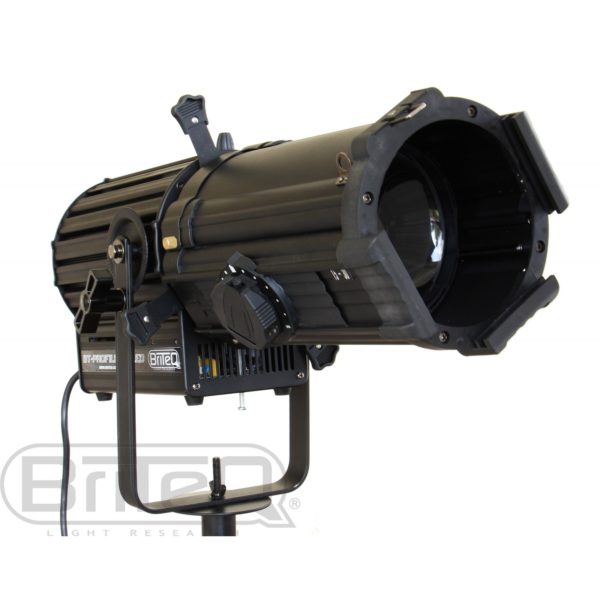

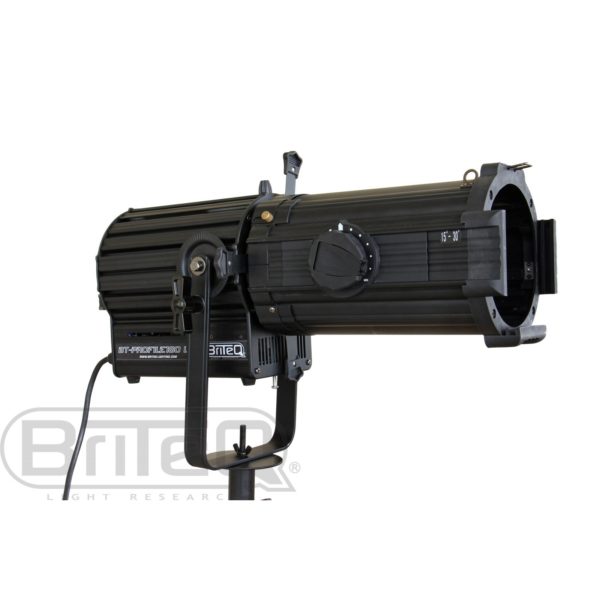

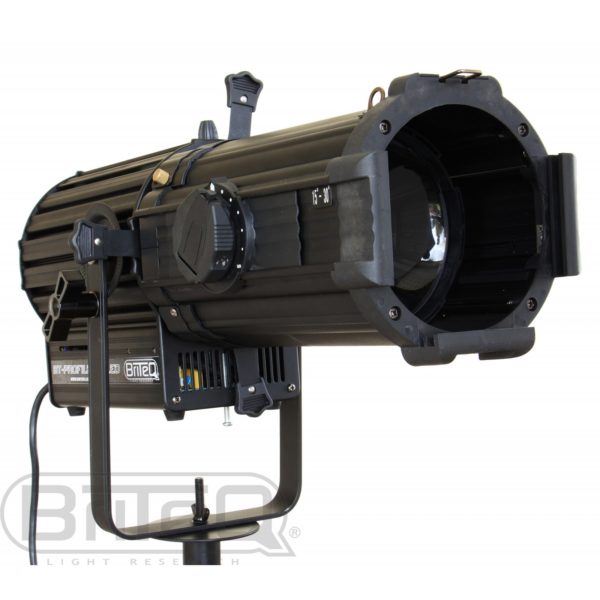

BT-PROFILE160/OPTIC 15-30

• A powerful LED profile spot based on high power COB LED technology
• It’s a perfect replacement for the halogen units with high power consumption!
• Rugged die-cast and extruded aluminum construction
• For your convenience the projector is sold as two separate parts:

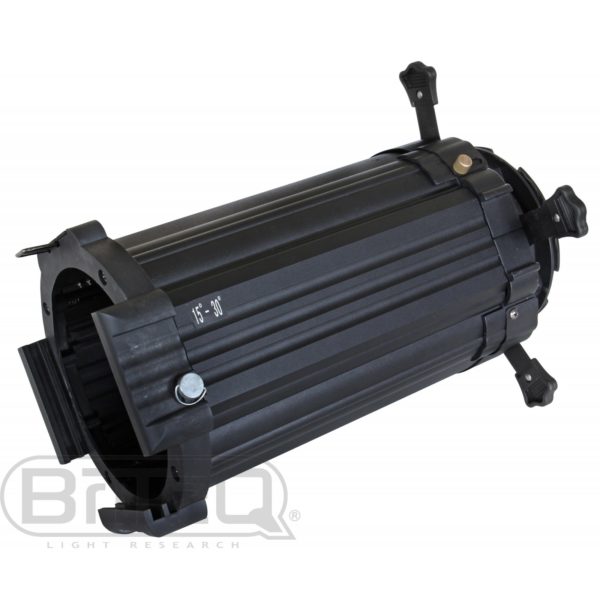

• BT-PROFILE160/OPTIC
  • Specially coated optics for sharply defined crisp projections

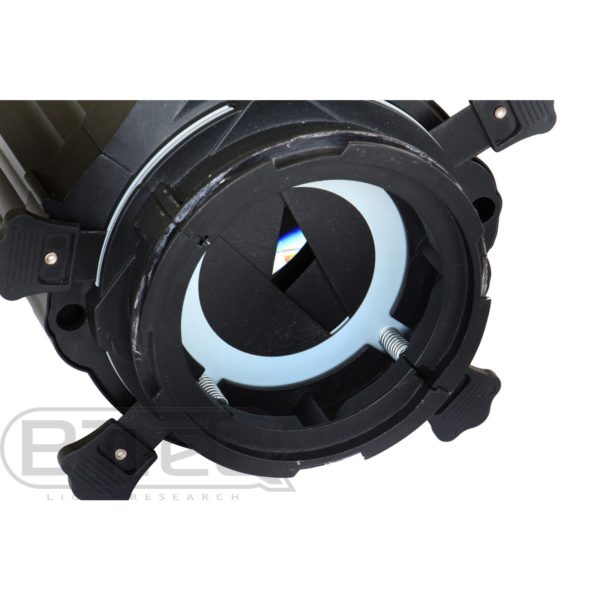

  • Four profile blades, specially coated for minimum reflections

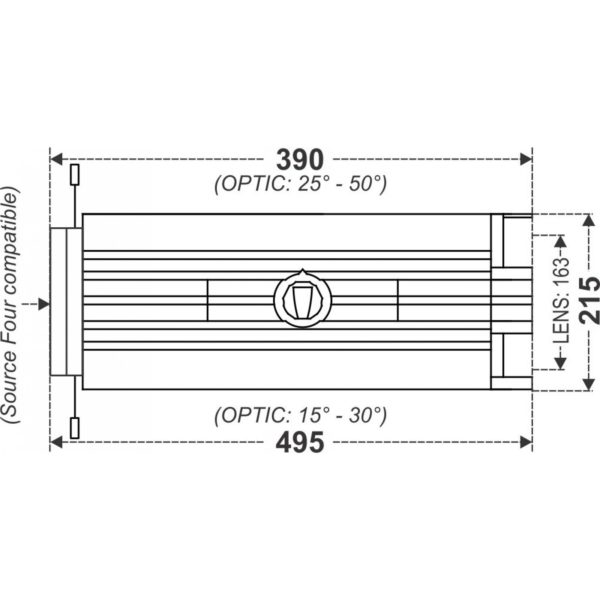

  • Two different optical units with adjustable zoom are available:

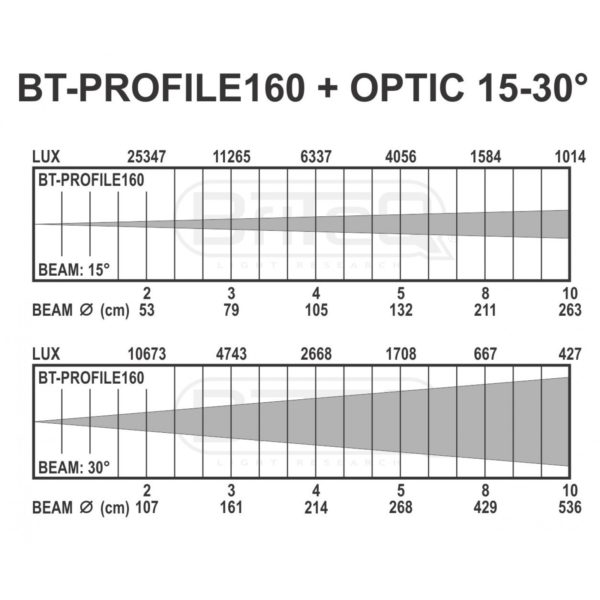

    • “BT-PROFILE160/OPTIC 15-30″ (order code: 6001): 15°-30° zoom range
    • “BT-PROFILE160/OPTIC 25-50″ (order code: 6002): 25°-50° zoom range
  • Lockable compartment for use of the optionally available:
    • GOBO Holder (“BT-PROFILE160/GOBO HOLDER”, order code: 6003)
      Outer diameter gobos: 86mm, optical diameter: 48mm
    • IRIS (“BT-PROFILE160/IRIS”, order code: 6004)
      Aperture diameter: adjustable from 5mm to 74mm

• Combined zoom/focus operation with locking mechanism

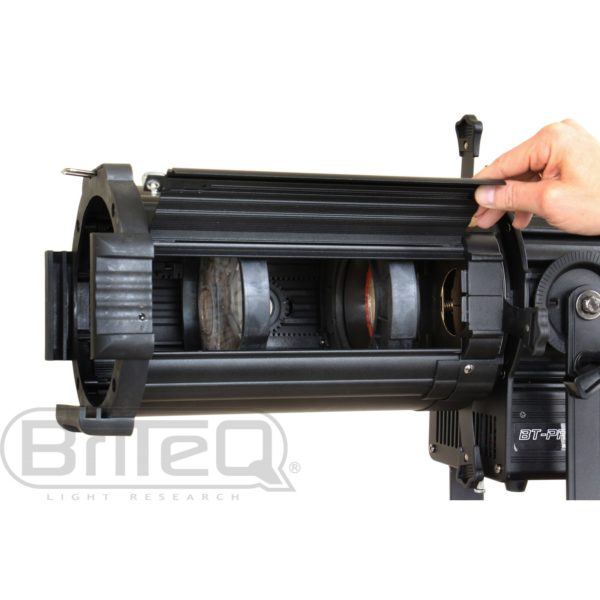

• Lockable lens compartment: easy access for internal lens cleaning
• Can replace ETC Source Four-optics
• Optical barrel can be rotated and locked I any position

• BT-PROFILE160/LED ENGINE


This is the actual LED ENGINE containing the 160W COB LED, which is sold separately.

See linked products for more information

BT-PROFILE160/LED ENGINE Manual V1.1 (2019-12)   Size: (1.78 MB)	BT-PROFILE160/LED ENGINE Manual V1.1 (2019-12)
BT-PROFILE160/O PDF leaflet Deutsch   Size: (1.4 MB)	PDF_LEAFLET_BT-PROFILE160/O_B06001_de.pdf
BT-PROFILE160/O PDF leaflet English   Size: (1.4 MB)	PDF_LEAFLET_BT-PROFILE160/O_B06001_en.pdf
BT-PROFILE160/O PDF leaflet Français   Size: (1.4 MB)	PDF_LEAFLET_BT-PROFILE160/O_B06001_fr.pdf
BT-PROFILE160/O PDF leaflet Nederlands   Size: (1.4 MB)	PDF_LEAFLET_BT-PROFILE160/O_B06001_nl.pdf
