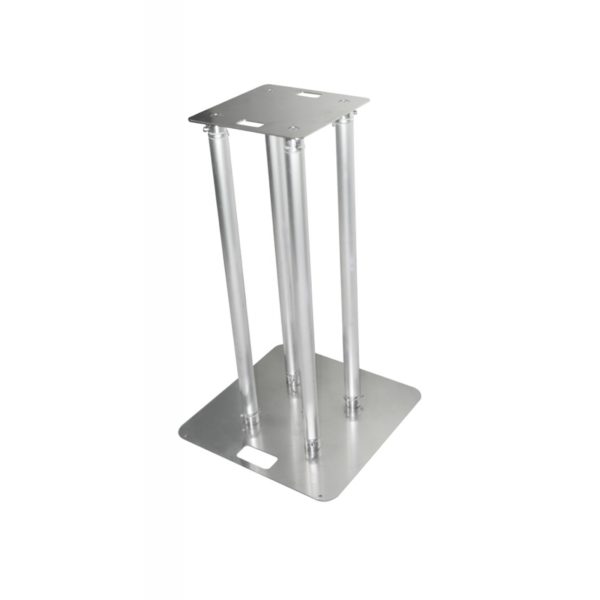

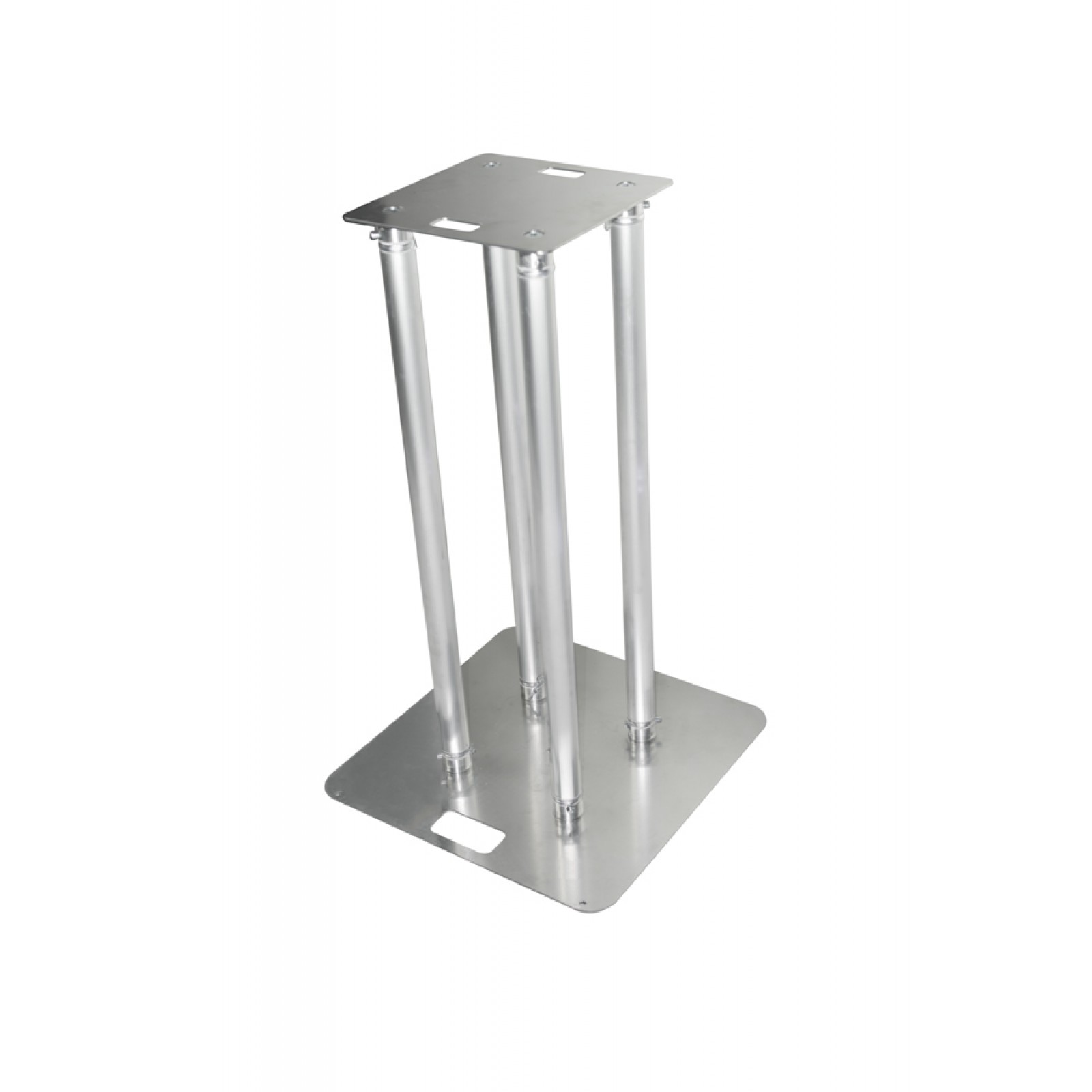

- This Truss stand can be used to mount all kinds of moving lights and other light equipment.
- The package constists of:

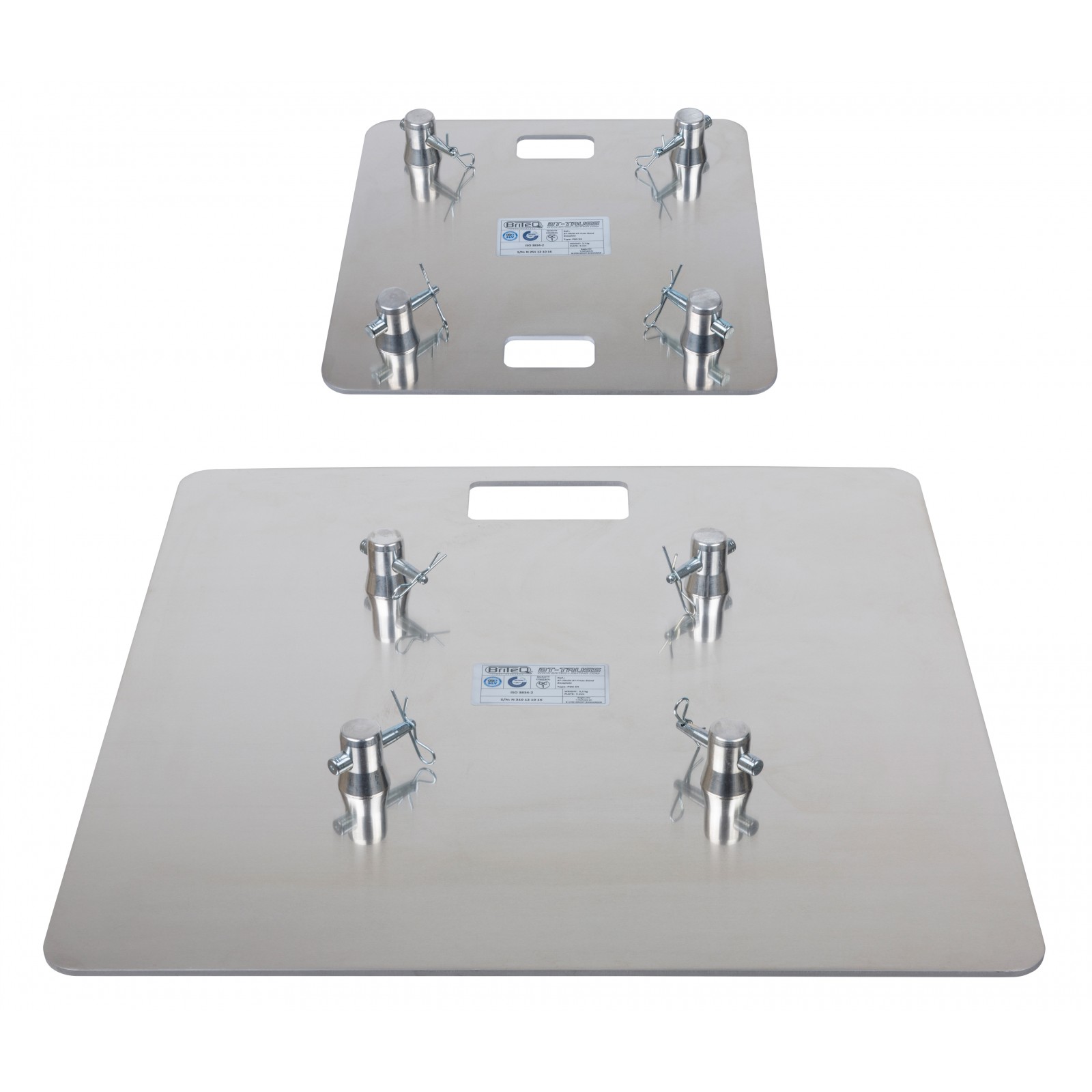

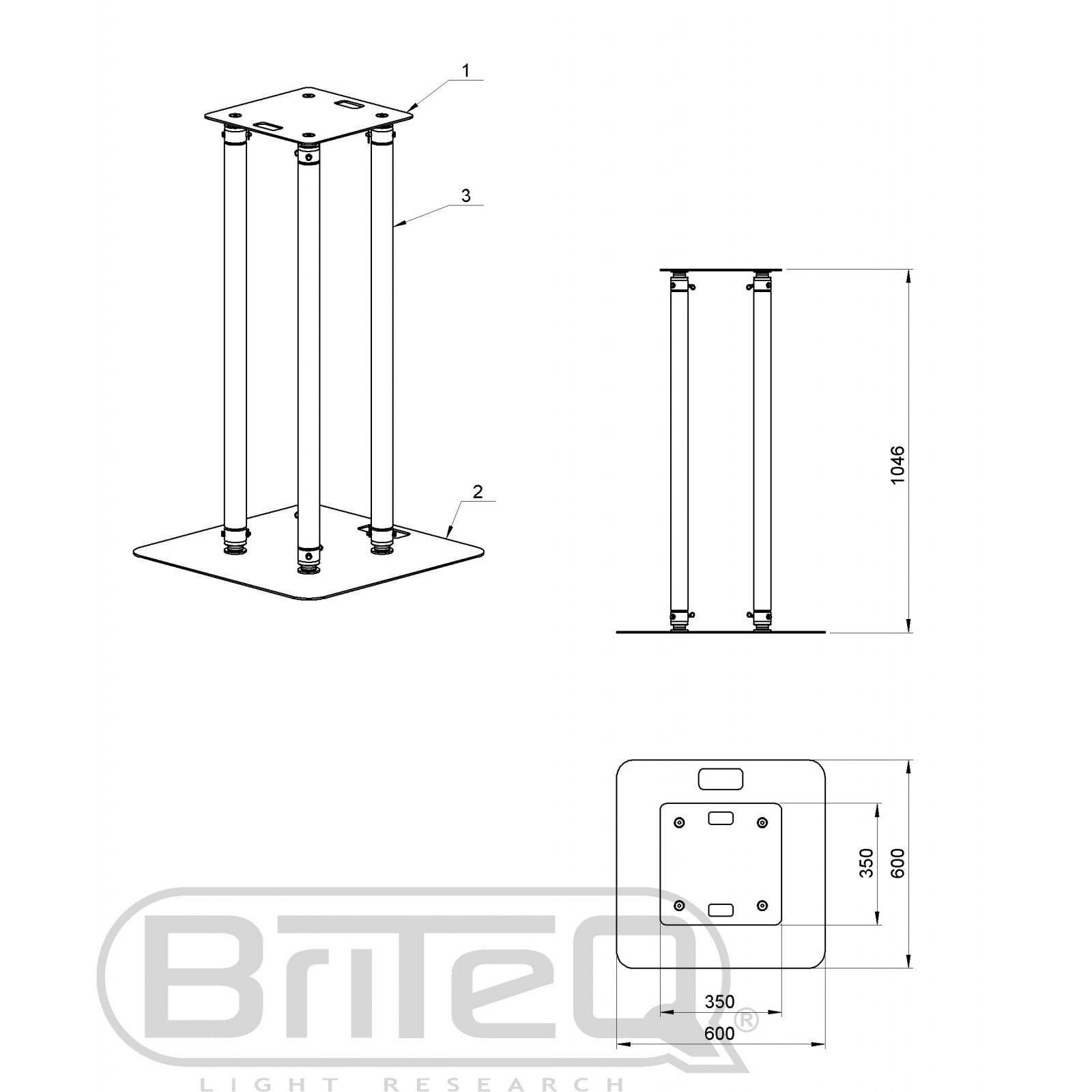

- 1 ALU Base plate 600x600mm (4mm thick)
- 1 ALU Top plate 350x350mm (4mm thick)

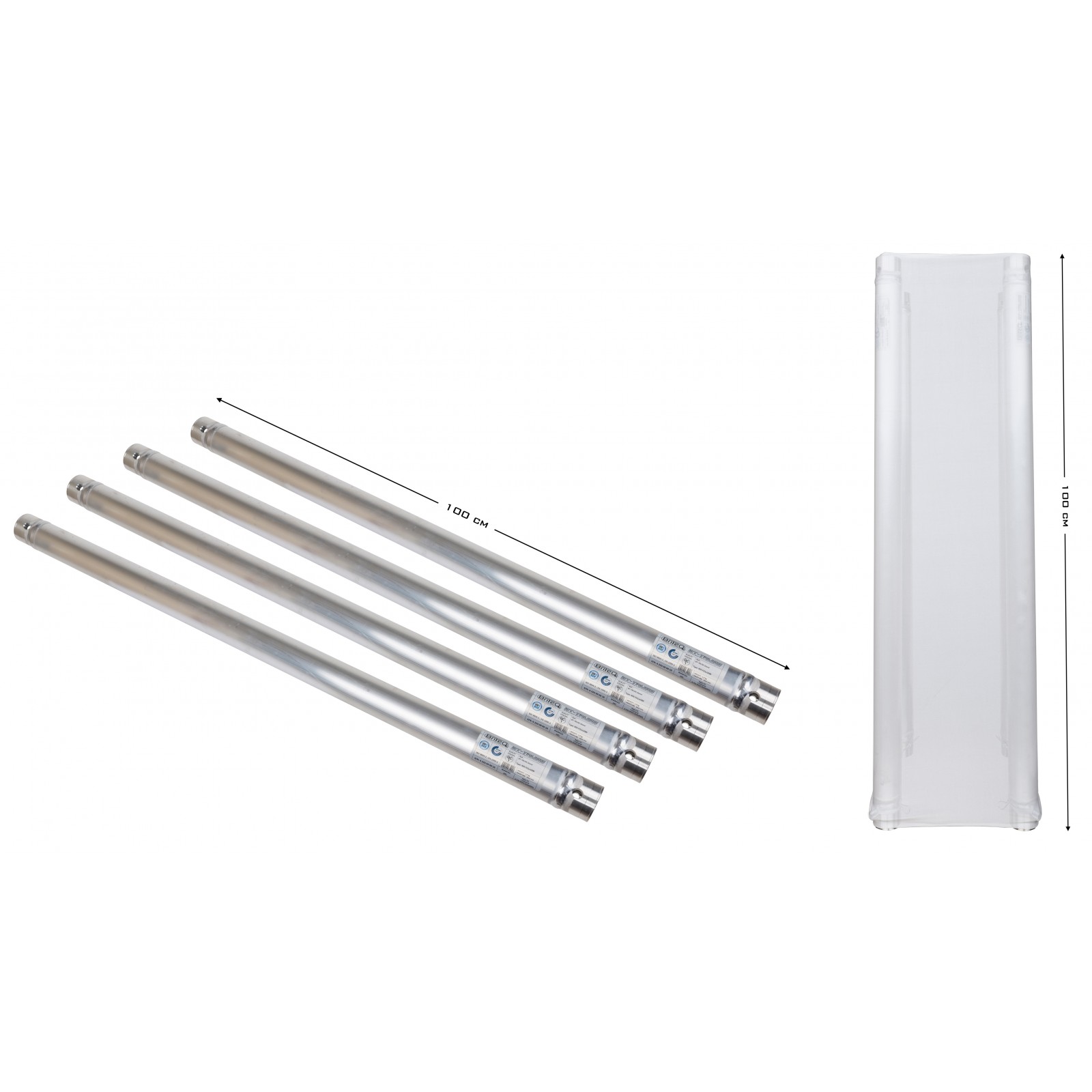

- 4 ALU Tubes D=50mm, length 1m (2mm thick)
- 1 Stretch cover truss sleeve (complies to ISO 6941 + ISO 15025)
- Incl. all mounting accessories

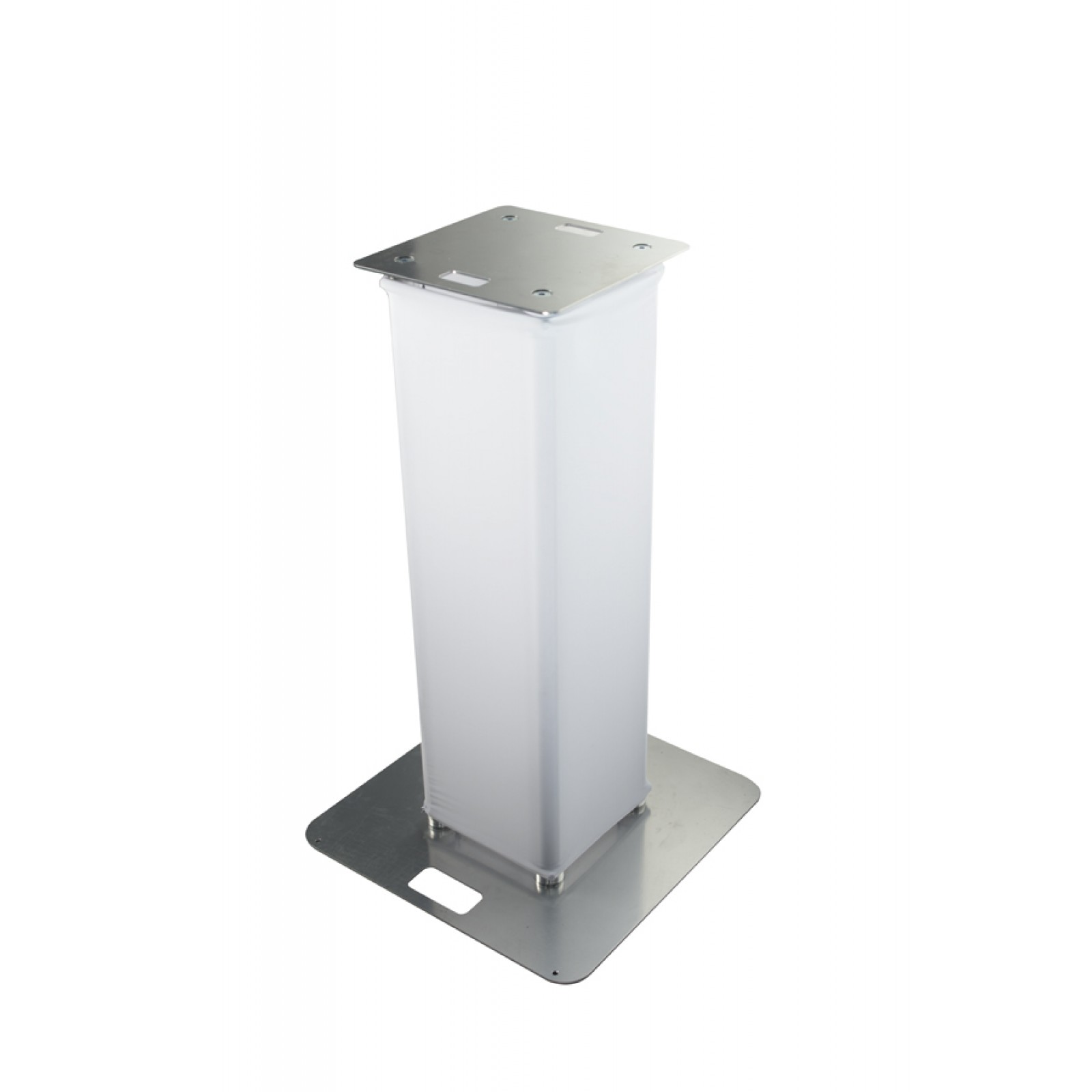

- Thanks to the translucent truss sleeve the stand can be lit up from the inside.
- Both Top and base plates have handle holes for easy transport.
- Stretch cover truss sleeve complies to:
- ISO 6941: 2005 (Textile fabrics — Burning behaviour — Measurement of flame spread properties of vertically oriented specimens)
- ISO 15025: 2000 (Protective clothing — Protection against heat and flame — Method of test for limited flame spread)
-
