BT-VINTAGE

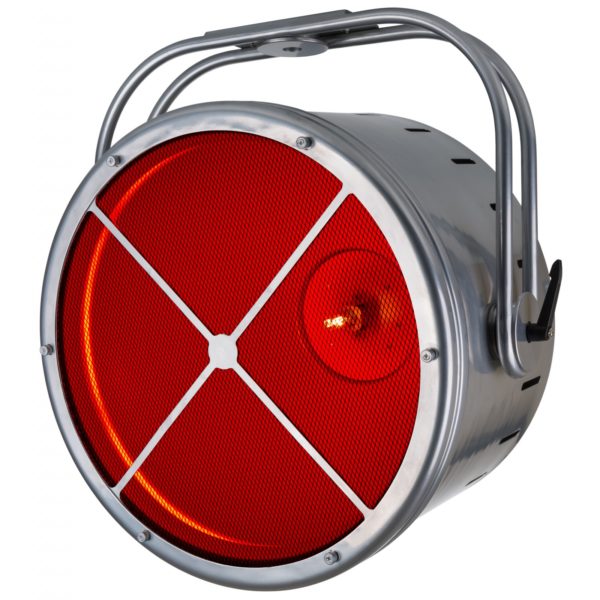

This attractive RETRO-STYLE PROJECTOR combines a gold colored reflector, HPL-575 lamp and high power RGB-leds (156 x 3W RGB) for amazing warm effects.
SKUB04547
EANCODE5420025645478

Share it:

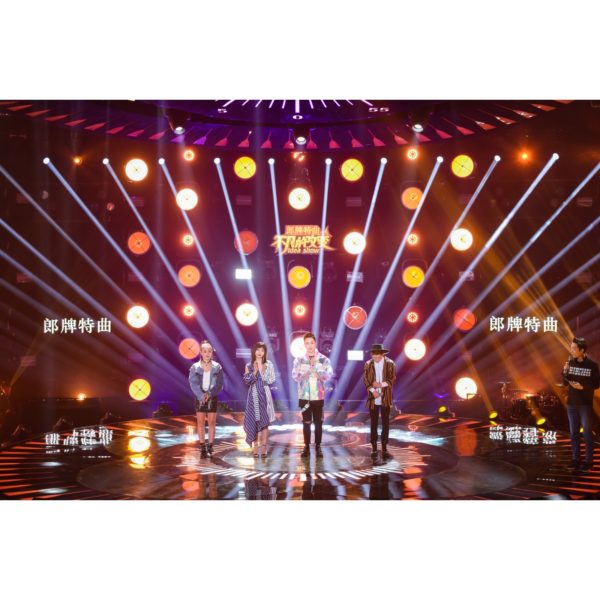

  • This attractive RETRO-STYLE PROJECTOR is the perfect eyecatcher for many applications, including podiums, TV-studios, discotheques, lounges, and many more … !

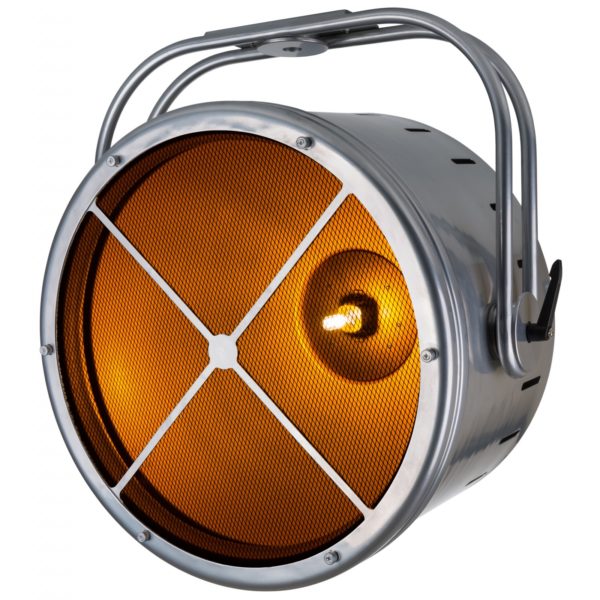

  • The combination of its gold colored reflector and HPL-575 halogen lamp produces a pleasant warm light.

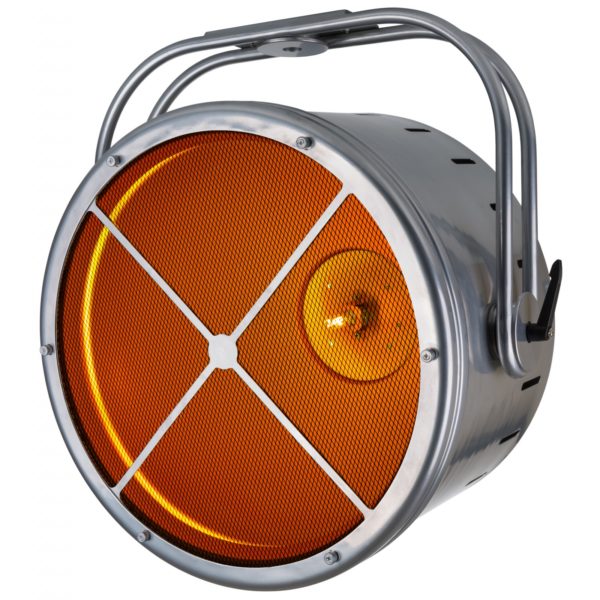

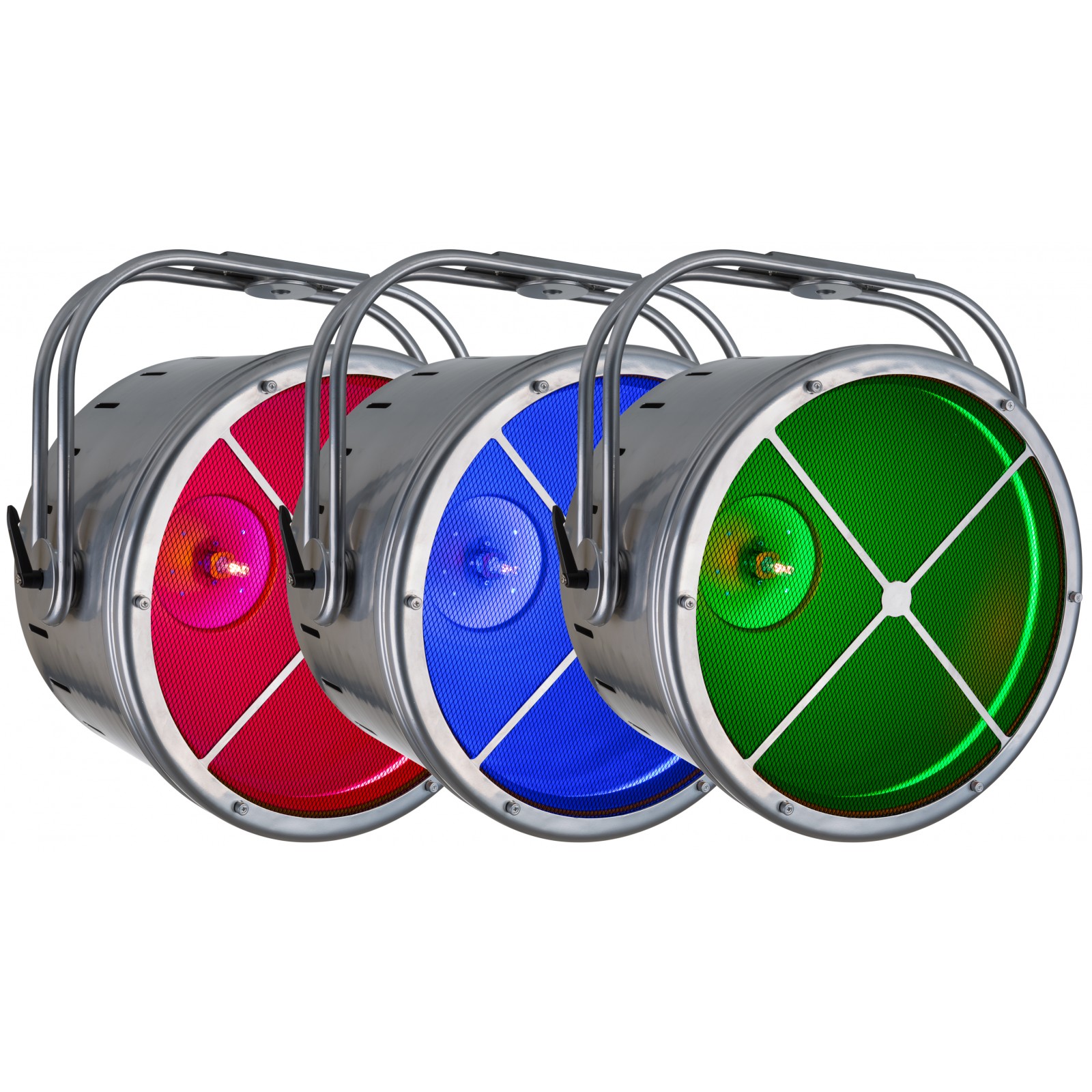

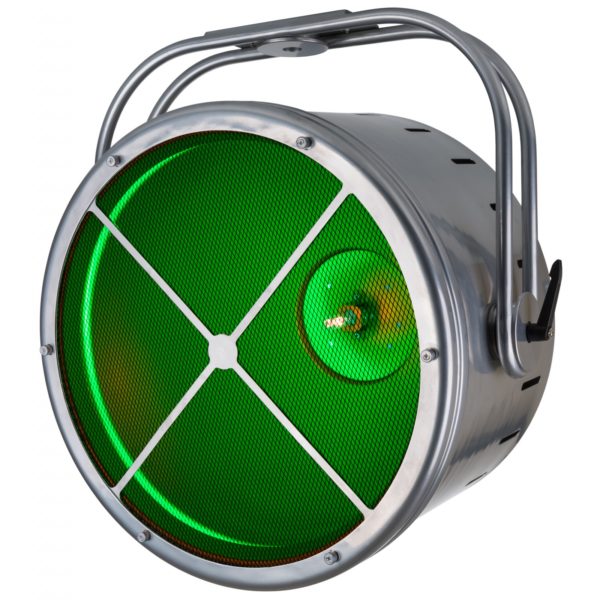

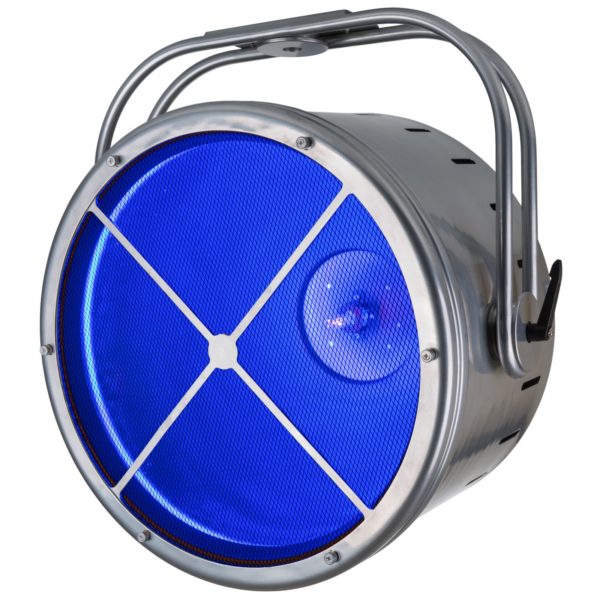

  • The integrated high power RGB-leds (156 x 3W RGB) can light up the reflector to produce amazing extra effects!
  • Integrated DMX-control for the halogen lamp dimmer & RGB-effects with different channel modes.
  • Prepared for wireless DMX-control with our optional “WTR-DMX DONGLE”.

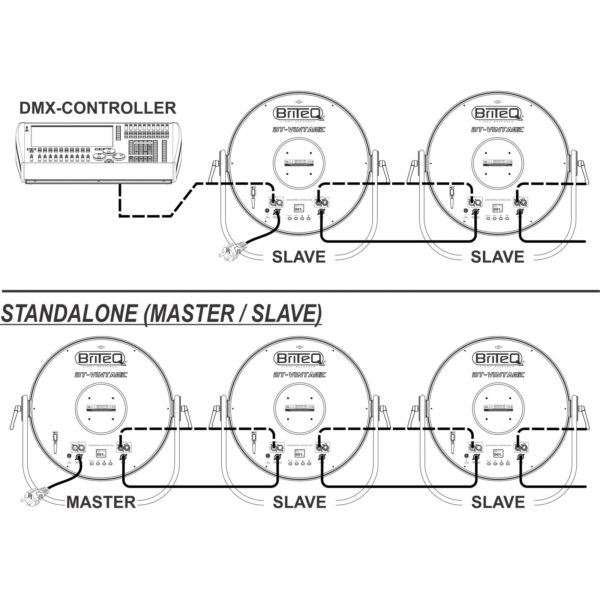

  • Can also be used in Standalone or master/slave mode, without the need for a DMX-controller.
  • RDM-functionality for easy remote setup: DMX addressing, channel mode, …
  • The matrix LCD-display assures easy navigation in the different setup menus
  • TV-Studio ready: passive cooling system and flicker free 1200Hz LED refresh rate.
  • Four dimmer curves: linear, square, inverse square, S-curve
  • In case of DMX failure you can choose between Standalone, blackout and freeze mode.
  • Lock function to avoid unwanted altering of the settings.
  • White balance adjustment to perfectly match the colors of several projectors.
  • Default factory settings + user settings can be saved/loaded.
  • Neutrik PowerCON in/outputs: easy daisy chaining of several units.
  • Both 3pin & 5pin DMX in/outputs for maximum compatibility
  • Prepared for use with omega brackets for fast installation
  • Uses an HPL-575W lamp, G9.5 base with heat sink (not included !).
  • An optional flight case for 2 units is available.
  • Protected and registered design (design patents n°004051803-0001 ~ 004051803-0002)
  • View FileBT-VINTAGE – Manual English   Size: (2.42 MB) BT-VINTAGE – Manual English
    View FileBT-VINTAGE – Manual Deutsch   Size: (2.4 MB) BT-VINTAGE – Manual Deutsch
    View FileBT-VINTAGE – Manual Français   Size: (2.42 MB) BT-VINTAGE – Manual Français
    View FileBT-VINTAGE – Manual Español   Size: (2.41 MB) BT-VINTAGE – Manual Español
    View FileBT-VINTAGE – Manual Nederlands   Size: (2.39 MB) BT-VINTAGE – Manual Nederlands
    View FileBT-VINTAGE – EC declaration   Size: (630.43 KB) BT-VINTAGE – EC declaration
    View FileBT-VINTAGE – Firmware Update V1.05   Size: (733.54 KB) BT-VINTAGE – Firmware Update V1.05 (2018-01-31)
    View FileBT-VINTAGE PDF leaflet Deutsch   Size: (1.88 MB) PDF_LEAFLET_BT-VINTAGE_04547_de.pdf
    View FileBT-VINTAGE PDF leaflet English   Size: (1.88 MB) PDF_LEAFLET_BT-VINTAGE_04547_en.pdf
    View FileBT-VINTAGE PDF leaflet Français   Size: (1.88 MB) PDF_LEAFLET_BT-VINTAGE_04547_fr.pdf
    View FileBT-VINTAGE PDF leaflet Nederlands   Size: (1.88 MB) PDF_LEAFLET_BT-VINTAGE_04547_nl.pdf
Application

Architectural, Commercial, DJ & Club, Stage & Rental, Theatre

Weight (kg)

14

Powerinput

AC 100 – 240V, 50/60Hz

Energy Label

No

Color

aluminium

Fixation

optional standard clamp, optional omega bracket

Brand

BRITEQ

EANCode

5420025645478
