Cameo SB 6 T RDM


6-Output DMX/RDM Splitter/Booster with 3 and 5-Pin Connectors

Item No. : CLSB6TRDM
EAN: 4049521310379

Share it:
  • Professional 6-output DMX/RDM splitter/booster
  • 6 optically and electronically isolated 3 and 5-pin XLR outputs
  • Compact housing
  • Original Neutrik® connectors for maximum reliability

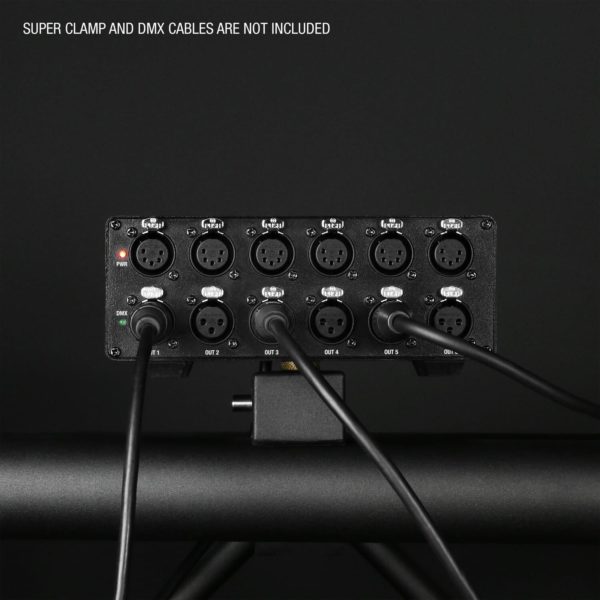

  • 3 x M10 threaded inserts for a variety of truss mounting options

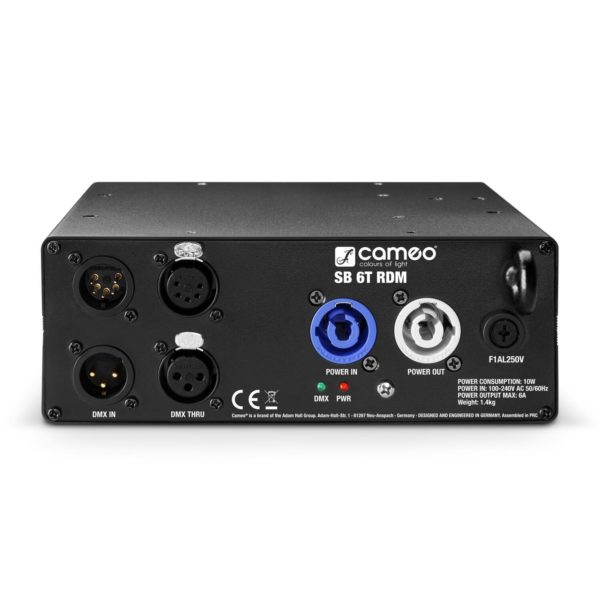

  • Power and DMX status indicators on front and rear panel
  • Optional 2 U 19″ rackmount frames available for one or two SB 6T RDM

Designed for professional applications and supporting bi-directional communication, the Cameo SB 6T RDM is a 6-output DMX/RDM splitter with two inputs and two parallel thru outputs. It sends the incoming DMX/RDM signal to six separate output ports that are electronically and optically isolated. Each output channel has its own driver to boost the DMX/RDM signal to its original level. All inputs and outputs are fitted with both 3-pin and 5-pin Neutrik® connectors for maximum flexibility and reliability. Front and rear panel LEDs indicate the power and DMX status, and three M10 female threaded inserts facilitate truss mounting. The Cameo SB 6T RDM comes with a powerCON power cord.



Manual

Data Sheet

Data Sheet

Data Sheet

Tender Specifications

Catalog

Product images
Product type

Other Lighting Accessories

Type

DMX splitter / booster

DMX inputs

2 (parallel)

DMX input connectors

XLR 3-pin male , XLR 5-pin male

DMX Thru Outputs

2 (parallel)

DMX Thru Output Connectors

XLR 3-pin female , XLR 5-pin female

DMX outputs

6

Fuse

F1AL / 250V

Indicators

2 x power LED , 2 x Signal LED

Mains connector

Neutrik® powerCON

Power consumption

10 W

Width

185 mm

Height

77 mm

Depth

170 mm

Weight

1,3 kg

Accessories (included)

Power supply

Operating voltage

100 V AC – 240 V AC, 50 – 60 Hz
