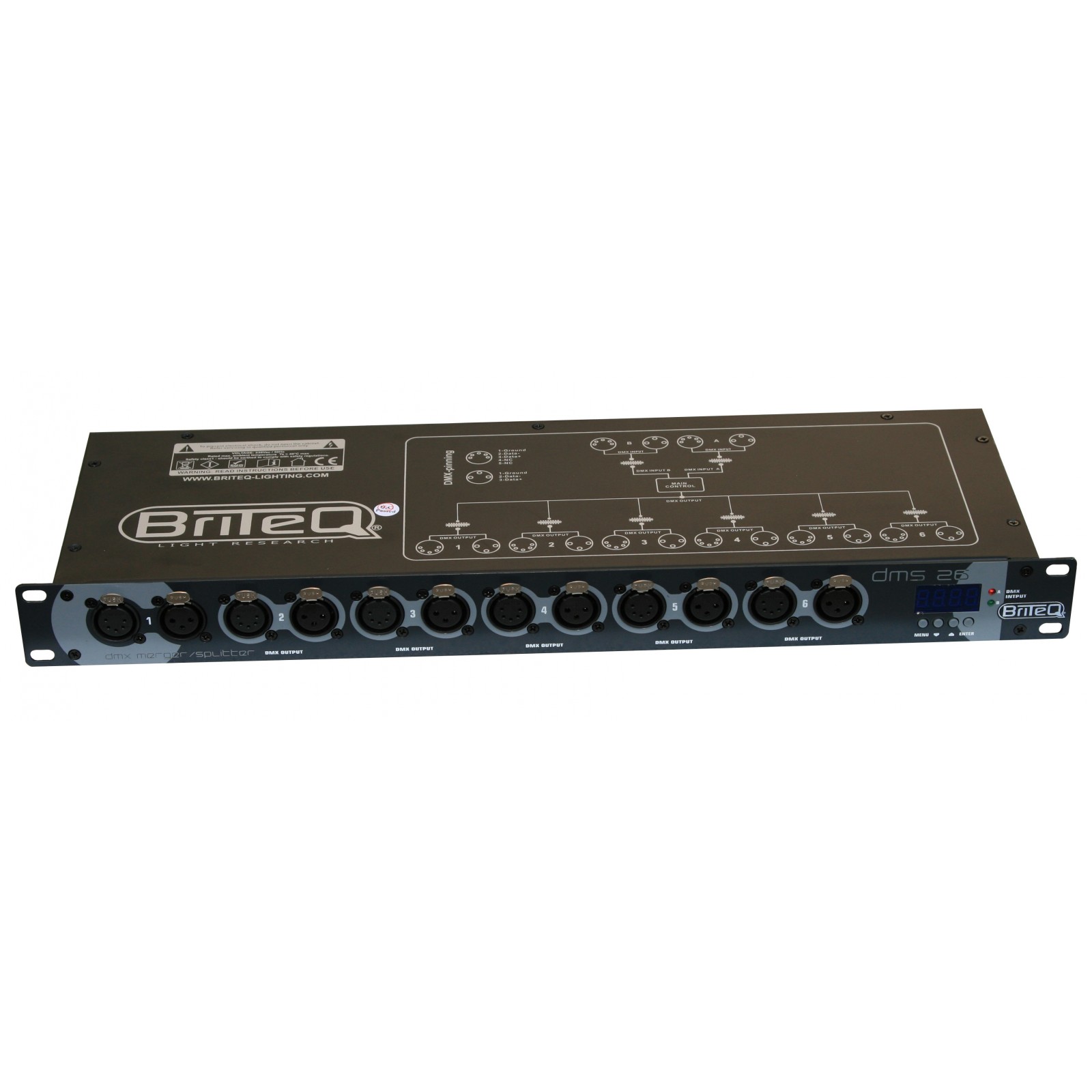

DMS-26


The perfect all-in-one ArtNet NODE solution with 8 highly configurable XLR 3pin DMX ports.
SKUB04638
EANCODE5420025646383

Share it:
  • The perfect all-in-one solution to secure your DMX-installations: MERGER + SPLITTER + BOOSTER
  • 100% electrical isolation between all in/outputs!
  • 2 DMX-inputs + 6 DMX-outputs, each equipped with 3pin and 5pin XLR-connectors.
  • The booster function analyses the incoming DMX-signal and builds it back up from scratch to make it perfect for further use.
  • The merger function combines 2 DMX-signals in different ways:
    • HTP: the highest value of 2 identical channels from 2 DMX-signals will have priority.
    • Backup: when the DMX-signal on input A fails, the DMX-signal in input B takes over immediately.
    • Merger: DMX-signals from 2 different controllers can be combined and send over 1 cable, you can choose the start address of the second controller.
  • The splitter function distributes the DMX-signal(s) from the input(s) over 6 identical outputs that are 100% isolated from each other: problems that occur on 1 output will not influence the other outputs!
  • The timing of the DMX-outputs can be adapted from 23ms to 45ms, increasing compatibility while connecting “slow” DMX-devices to “fast” DMX-controllers.
  • Output behavior can be selected when suddenly both DMX-inputs fail:
  • Null: no DMX signal on the outputs
  • Hold: keep the last DMX values on the outputs.
  • Clear: set the DMX values on all outputs to zero.
  • Easy setup via 4digit LED display
View FileDMS-26 Manual   Size: (1.18 MB) 04625
View FileDMS-26 EC declaration   Size: (661.15 KB) DMS-26 EC declaration
View FileDMS-26 PDF leaflet Deutsch   Size: (384 KB) PDF_LEAFLET_DMS-26_04625_de.pdf
View FileDMS-26 PDF leaflet English   Size: (382.59 KB) PDF_LEAFLET_DMS-26_04625_en.pdf
View FileDMS-26 PDF leaflet Français   Size: (384.76 KB) PDF_LEAFLET_DMS-26_04625_fr.pdf
View FileDMS-26 PDF leaflet Nederlands   Size: (383.02 KB) PDF_LEAFLET_DMS-26_04625_nl.pdf
Application

DJ & Club, Stage & Rental

Series

N/A

Dimensions (cm)

48;3 x 4.4 x 15 cm

Weight (kg)

2.92

Powerinput

AC 100 – 240V, 50/60Hz

Energy Label

No

Power consumption W

7

Color

black

Display

LED

Fixation

19" rack mountable

RU

1U

IP rating

indoor

programmable

No

upgradable software

No

maximum DMX channels

8

input

3 pin XLR, IEC, artnet, RJ45

output

3 pin XLR, artnet, RJ45

Brand

BRITEQ

EANCode

5420025646383
