DSPA-1000

Professional DSP-controlled switch mode power amplifier: 2x 500Wrms / 4ohm
SKU: B00274
EANCODE: 5420025602747
Add to Wishlist
Add to Compare
Add to quote
Share it:
  • Professional DSP-controlled switch mode power amplifier.
  • The high efficient class-D design guarantees high power, even at 2Ω!
  • Stereo: 2x 300Wrms @ 8Ω  ~  2x 500Wrms @ 4Ω  ~  2x 750Wrms @ 2Ω
  • Bridge: 1000Wrms @ 8Ω  ~  1500Wrms @ 4Ω
  • Perfect for both DJ and install applications (pubs, shops, hotels, restaurants, … )
  • Complete DSP-section with:
    • HPF: (40~125Hz) eliminates unwanted, energy absorbing frequencies.
    • LPF: (6.3k~20kHz) cuts the upper frequencies if needed to avoid oscillations.
    • 8 Band parametric EQ: (100Hz~12.5kHz, Q:0.5~5, ±6db) for perfect tuning.
    • 2 Limiters: for increased protection (threshold 0~-12dB).
    • 2 Delays: can be set separately from 0 to 20ms (0 to 6,86m) for each channel.
    • Crossover: build an active system (Linkwitz-Riley 24dB/oct, 50Hz~3,15kHz)

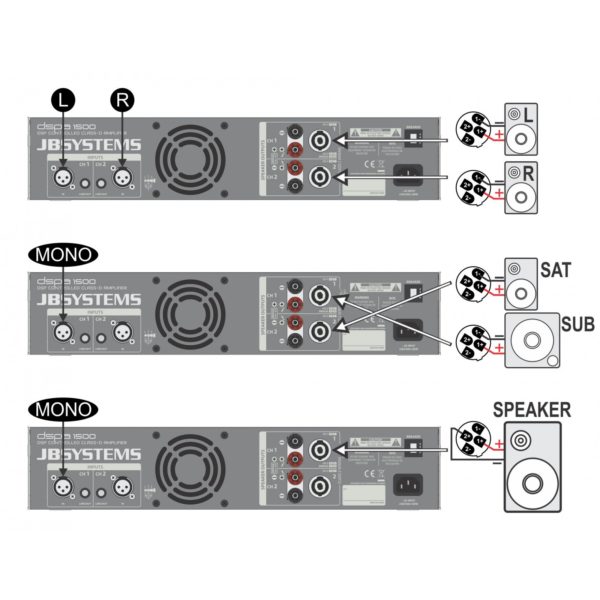

    • 3 working modes: Stereo, Bridge, Input Y (mono in, used for active system)
  • Temperature controlled fan cooling
  • DC fault + high temperature + overload + short circuit protections

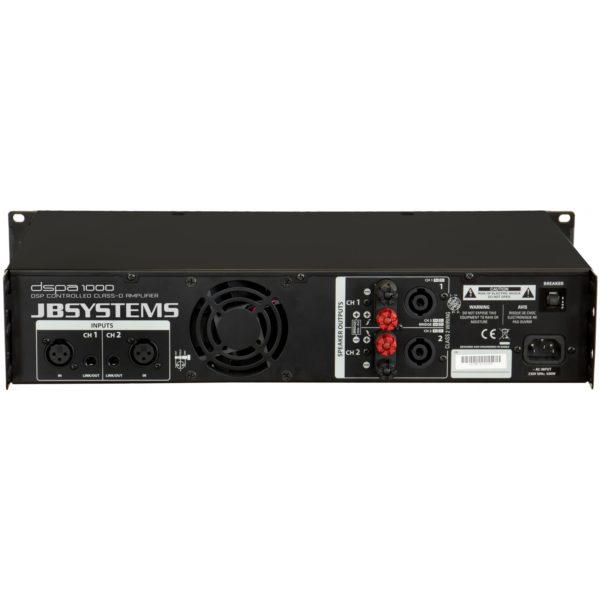

  • Balanced XLR + jack inputs with possibility for daisy chaining of several inputs.
  • SpeakON® + bind-post wire terminal outputs
  • View FileDSPA-1000 Manual   Size: (3.9 MB) DSPA-1000 Manual EN / FR / NL / DE / ES
    View FileDSPA-1000 PDF leaflet Deutsch   Size: (1.37 MB) PDF_LEAFLET_DSPA-1000_B00274_de.pdf
    View FileDSPA-1000 PDF leaflet English   Size: (1.37 MB) PDF_LEAFLET_DSPA-1000_B00274_en.pdf
    View FileDSPA-1000 PDF leaflet Français   Size: (1.37 MB) PDF_LEAFLET_DSPA-1000_B00274_fr.pdf
    View FileDSPA-1000 PDF leaflet Nederlands   Size: (1.37 MB) PDF_LEAFLET_DSPA-1000_B00274_nl.pd
Application

Commercial, DJ & Club, Stage & Rental
Series

DSPA
Dimensions (cm)

48,2 x 8×8 x 28 cm
Weight (kg)

5.24
Color

black
Powerinput

AC 100 – 240V, 50/60Hz
Energy Label

No
Display

LCD
Fixation

19" rack mountable
RU

2U
IP rating

indoor
amplifier class

D
min. frequency (Hz)

20
max. frequency (Hz)

20000
S/N ratio (> dB)

100
damping factor (>...)

200
max. output channels

2
Wrms 2Ω stereo, per channel

750
Wrms 4Ω stereo, per channel

500
Wrms 8Ω stereo, per channel

300
Wrms 4Ω bridge

1500
Wrms 8Ω bridge

1000
functions

fixed crossover, bridge mode, DSP, limiter
input

3 pin XLR, jack, IEC
output

speakon
Brand

JB SYSTEMS
EANCode

5420025602747
