- Professional DSP-controlled switch mode power amplifier.
- The high efficient class-D design guarantees high power, even at 2Ω!
- Stereo: 2x 440Wrms @ 8Ω ~ 2x 750Wrms @ 4Ω ~ 2x 1200Wrms @ 2Ω
- Bridge: 1500Wrms @ 8Ω ~ 2400Wrms @ 4Ω
- Perfect for both DJ and install applications (pubs, shops, hotels, restaurants, … )
- Complete DSP-section with:
- HPF: (40~125Hz) eliminates unwanted, energy absorbing frequencies.
- LPF: (6.3k~20kHz) cuts the upper frequencies if needed to avoid oscillations.
- 8 Band parametric EQ: (100Hz~12.5kHz, Q:0.5~5, ±6db) for perfect tuning.
- 2 Limiters: for increased protection (threshold 0~-12dB).
- 2 Delays: can be set separately from 0 to 20ms (0 to 6,86m) for each channel.
- Crossover: build an active system (Linkwitz-Riley 24dB/oct, 50Hz~3,15kHz)

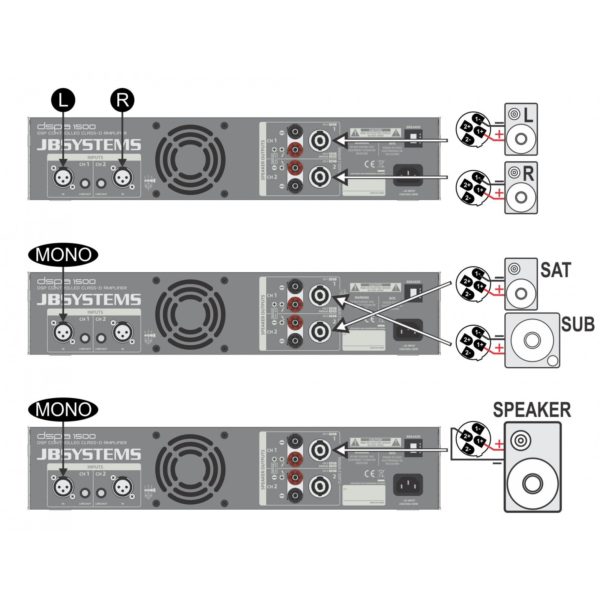

- 3 working modes: Stereo, Bridge, Input Y (mono in, used for active system)
- Temperature controlled fan cooling
- DC fault + high temperature + overload + short circuit protections

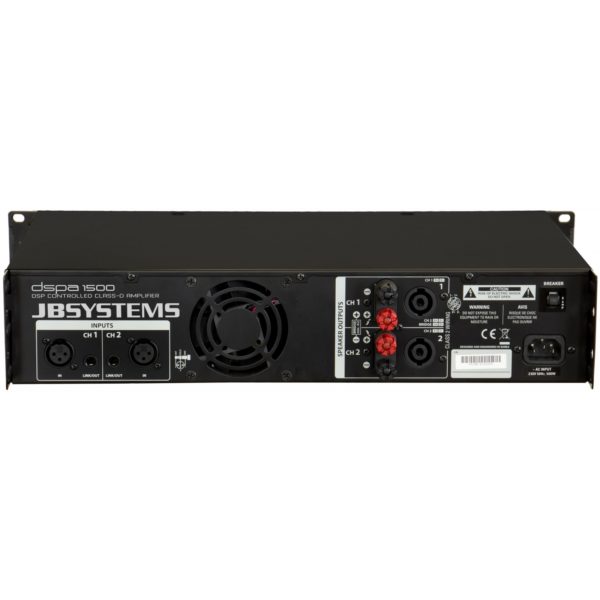

- Balanced XLR + jack inputs with possibility for daisy chaining of several inputs.
- SpeakON® + bind-post wire terminal outputs
-
DSPA-1500 Manual Size: (3.9 MB) DSPA-1500 Manual DSPA-1500 PDF leaflet Deutsch Size: (1.38 MB) PDF_LEAFLET_DSPA-1500_B00275_de.pdf DSPA-1500 PDF leaflet English Size: (1.38 MB) PDF_LEAFLET_DSPA-1500_B00275_en.pdf DSPA-1500 PDF leaflet Français Size: (1.38 MB) PDF_LEAFLET_DSPA-1500_B00275_fr.pdf DSPA-1500 PDF leaflet Nederlands Size: (1.38 MB) PDF_LEAFLET_DSPA-1500_B00275_nl.pdf
DSPA-1500
Application | Commercial, DJ & Club, Stage & Rental |
---|---|
Series | DSPA |
Dimensions (cm) | 48.2 x 8.8 x 28 cm |
Weight (kg) | 5.7 |
Color | black |
Powerinput | AC 100 – 240V, 50/60Hz |
Energy Label | No |
Display | LCD |
Fixation | 19" rack mountable |
RU | 2U |
IP rating | indoor |
amplifier class | D |
min. frequency (Hz) | 20 |
max. frequency (Hz) | 20000 |
frequency range | 50 Hz – 3150 Hz |
S/N ratio (> dB) | 100 |
damping factor (>...) | 200 |
max. output channels | 2 |
Wrms 2Ω stereo, per channel | 1200 |
Wrms 4Ω stereo, per channel | 750 |
Wrms 8Ω stereo, per channel | Wrms 8Ω stereo, per channel |
functions | functions |
input | 3 pin XLR, jack, IEC |
output | speakon |
Brand | JB SYSTEMS |
EANCode | 5420025602754 |
