HALO FRESNEL 200W

HALO LED is the result of a Sagitter project, which can replace the most common incandescent theatre projectors with a product featuring low power consumption and the same luminous efficiency of the most common incandescent sources. The combination of a cutting edge power supply system and a next generation 3200K white COB LED source, makes the projector suitable for stages of any size. The optical equipment capable of modifying its projection angle from 15° to 55° is entrusted to a high-precision electronic zoom, controlled both via DMX and from the control panel through dedicated control keys.

Optic system

• Beam angle: zoom 15°-55°
• Luminous flux: 2396 lux @5mt (15°)
• Luminous flux: 1463 lux @5mt (55°)

Color system

• LED source COB Warm White 3200K

Effects

• Linear dimmer 0-100%
• Strobe: electronic 1-20 flashes/s with adjustable speed
• Control and programming
• 2 different DMX channels configurations: 2/3 channels
• Protocol USITT DMX 512
• Manual mode for dimmer and zoom adjustment
• Direct manual control for zoom on the rear panel

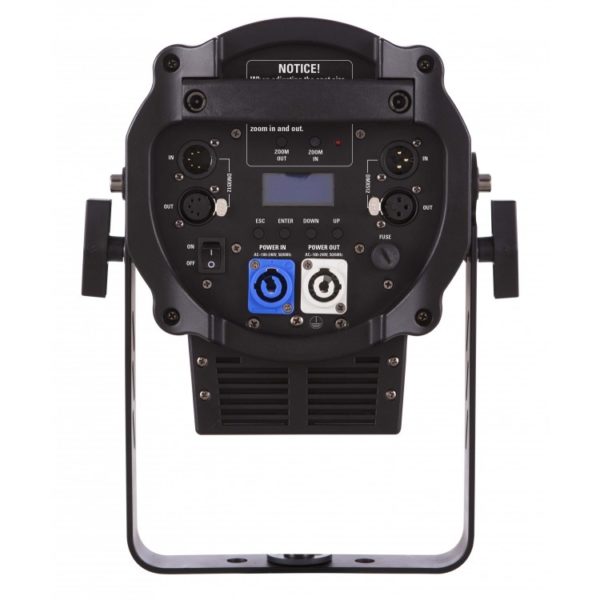

Structure and cabinet

• Black aluminum housing
• LCD blue graphic display
• Mounting points: single bracket for suspension
• Rotating barndoor with “safety cable” (included)
• Single handle in the rear side for easy transportation
• 3/5-poles XLR in/out connection
• IP rating: IP 20
• Forced air cooling system “low noise” with fans for high efficiency and very low noise

Power supply

• Input Voltage: AC~100-240V 50/60Hz
• Switching power supply unit
• Power consumption 250W
• IN / OUT power connection with powercon sockets
• Power supply cable 1,5 mt included
• Max 4 pcs linkable @240V
