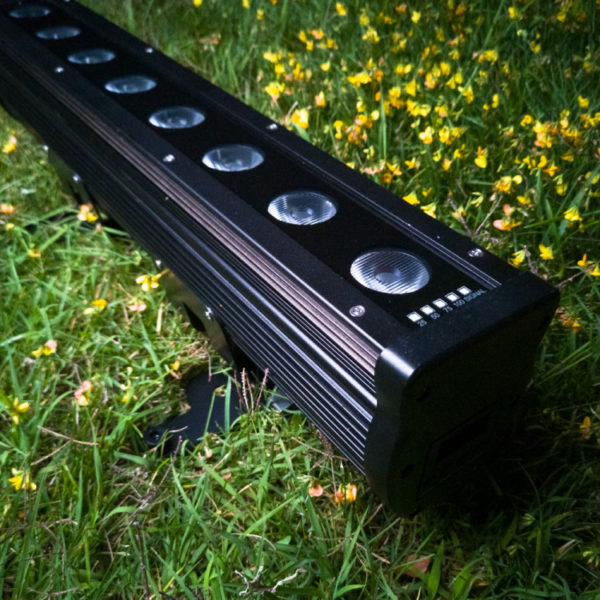

IP COLOR BAR 8C BATTERY

OPTIC SYSTEM

• Beam angle: 10° x 40°
• Luminous flux: 600 lux @5mt (full on)

COLOR SYSTEM

• Led source 4 in 1 RGBW Full Color
• Infinite chromatic possibilities and colour temperature control

EFFECTS

• Linear Dimmer 0-100%
• Electronic strobe: 1-20 flashes/s with adjustable speed
• Color macros selectable by DMX
• Single pixel control

CONTROL AND PROGRAMMING

• 5 DMX configurations available: 1/4/9/32/36 channels
• Protocol USITT DMX 512
• Built-in DMX wireless receiver by Wireless Solutions
• Master / Slave mode with cable
• Static color mode with strobe adjustment
• Automatic mode with 13 different programs selectable from the display with speed adjustment
• Color mode with 51 different pre-programmed color macros
• IR remote controller included with possibility to select colors or macros (Included)
• Work power function for energy saving (eco mode)

STRUCTURE AND CABINET

• Die cast aluminium housing, black color
• Blue LCD graphic display
• Front tempered glass
• “Light up” positioning with angle adjustment
• DMX 3-poles XLR IP65 in/out connection
• IP rating: IP 65
• Convection cooling system without fans

POWER SUPPLY

• Input Voltage: AC~100-240V, 50/60 Hz, for normal working andbattery recharge
• Switching power supply unit
• Internal rechargeable battery: 12VDC
• Capacity: 2×12 Ah
• Runtime battery: ~ 5 h (full ON)
• Max power: 80W @ 230VAC
• Charging cycle: ~ 8 h (Projector off )
• IP65 Powercon True ONE input power connection
