LD-1024WALL+


1024 Channel DMX interface for fixed architectural purposes.
SKUB05017
EANCODE5420025650175

Share it:
  • 1024 (2x 512) Channel DMX interface for fixed architectural purposes
  • Can easily be mounted on walls of any surface.
  • All the connections are on inside the back panel so no wires are visible.
  • Nice white finish with blue display and blue led buttons for the activated functions

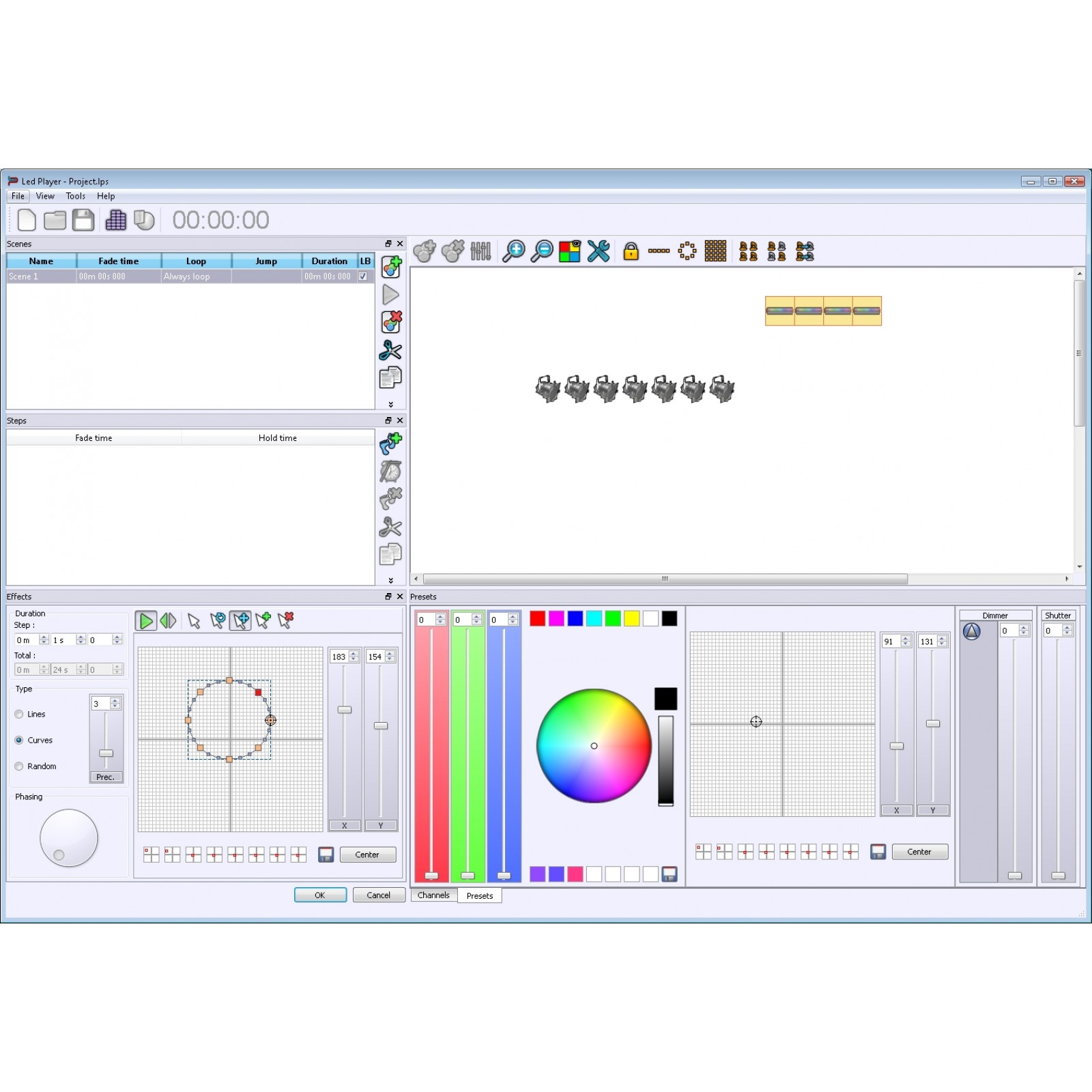

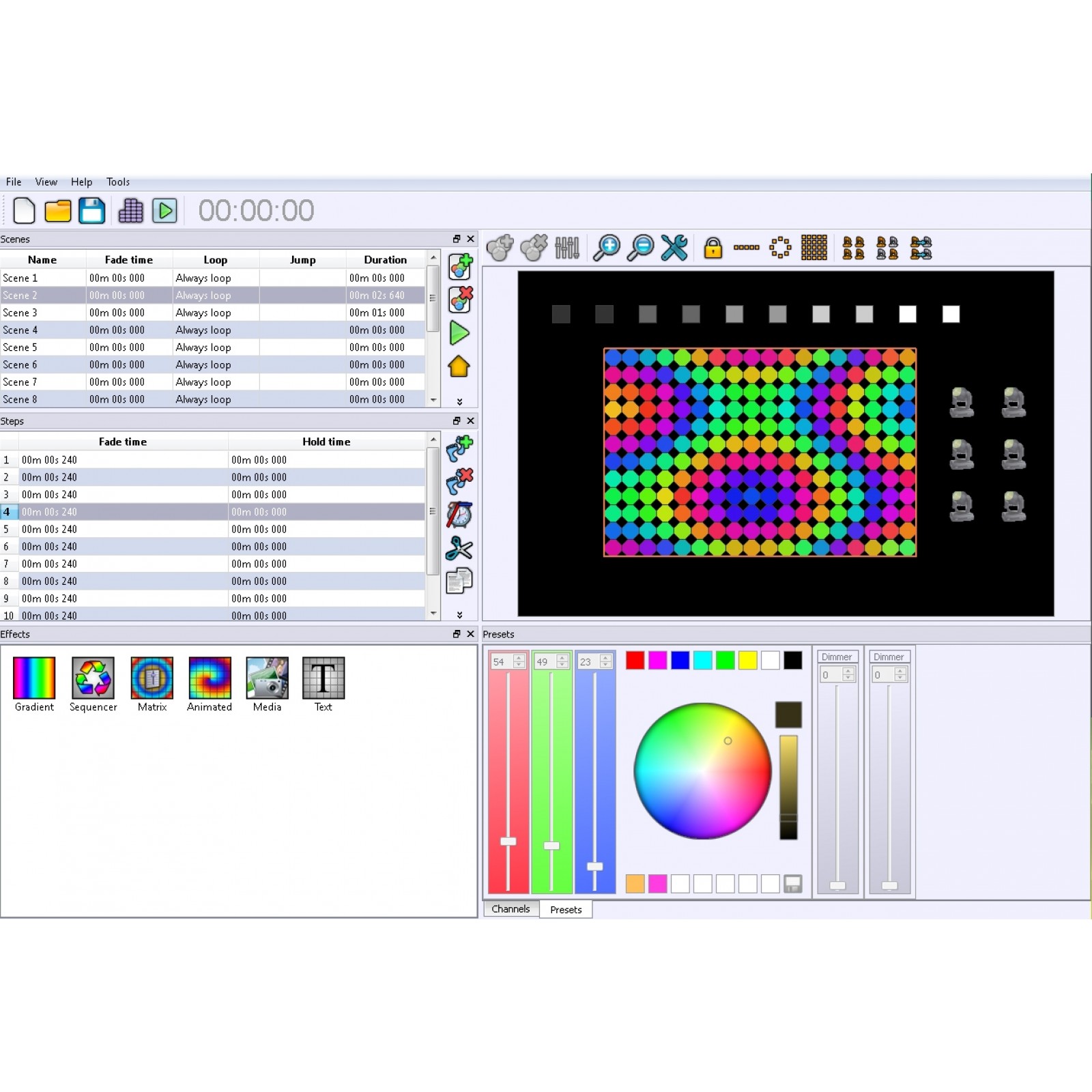

  • Works with the Chromateq Led Player software. (included)
  • All the necessary programs can be created via computer and stored into the interface. Once this is done, you only have to press the buttons to activate your programs.
  • Standalone functions:
    • Direct access via the trigger buttons for: Scene, Page, Color, Speed , Dimmer
    • Multiple Zone control: 5 programs can run simultaneously !
    • 8 trigger buttons to recall max. 80 programmed scenes (8 buttons x 10 pages)
    • Direct access to 8 custom colors (or scroll 100 preprogrammed colors via the up & down buttons)
    • Speed and dimmer adjustment for each scene
    • Automatic Real Time Clock triggering for different scenes (day, week, month, year)
    • Automatic scene recovery when the if the power was accidentally cut off
    • External Triggering up to 31 contacts (mutiplexed)
    • Master/Slave mode for up to 32 interfaces connected together
  • USB cable included
  • An optional external infra-red receiver can be connected to the unit (LD-512Kit-IR = IR receiver + 2 remote controllers)
  • For more information about the software: www.chromateq.com
View FileLD-512WALL+ & LD-1024WALL+ Manual   Size: (1.47 MB) LD-512WALL+ & LD-1024WALL+ Manual
View FileLD-1024WALL+ EC Declaration   Size: (446.98 KB) LD-1024WALL+ EC Declaration of Conformity
Application

Architectural

Dimensions (cm)

11 x 12,7 x 1,9 cm

Weight (kg)

0.5

Energy Label

No

Color

white

Display

LED

IP rating

indoor

programmable

Yes

upgradable software

Yes

maximum DMX channels

1024

input

usb, screw terminal block (power), screw terminal block (dmx)

output

screw terminal block (dmx), screw terminal block (power)

Brand

BRITEQ

EANCode

5420025650175
