LDP-COLORSTRIP 24FC

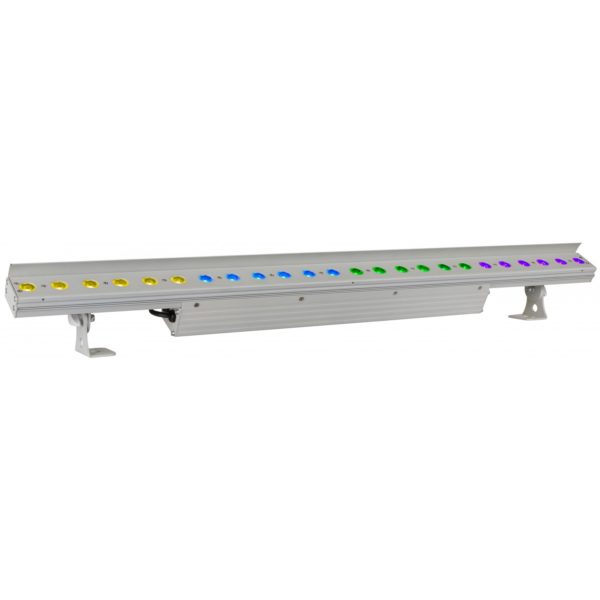

Powerful indoor LED projector equipped for typical “wall wash” applications.
96cm long enclosure, equipped with 24pcs 4W RGBW-leds, divided into 4 sections.
SKUB05144
EANCODE5420025651448

Share it:
  • Powerful indoor LED projector equipped for typical “wall wash” applications.
  • Fully compatible with the IP65 outdoor LDP-POWERBAR
  • Excellent light output and perfect color mixing thanks to 4Watt RGBW LEDs and high quality optics.
  • 96cm long enclosure, equipped with 24 leds, divided into 4 sections.
  • Elegant, extruded aluminum housing.
  • The discretely designed bracket can be easily adjusted in any position.
  • The included barndoor hides the LEDs and thus reduces unwanted glare.
  • Optimal thermal management for long lifespan and easy maintenance
  • Internal power supply and DMX / LED-driver electronics for easy installation.
  • IEC-C13/C14 and XLR-3pin input / output connectors allow to link up to 16pcs of LDP-COLORSTRIP 24FC.
  • Perfect for use in hotels, clubs, shops, homes, …
  • Excellent built-in programs for wonderful, ever changing, light shows.
  • Completely silent operation, thanks to natural convection cooling system.
  • Alphanumeric OLED-display and backlit touch keys to select different options of the setup menu.
  • Works in standalone, master/slave or can be selected by DMX: fading colors, static colors / chases
  • Both models can be daisy chained and used together in master/slave mode.
  • Full DMX control with different channel modes: from 3ch up to 20ch (4 sections)
  • Adaptable lamp behavior thanks to seamless dimmer speed control.
  • Four dimmer curves: linear, square, inverse square, S-curve
  • In case of DMX failure, you can choose between blackout and freeze mode.
  • Lock function to avoid unwanted altering of the settings.
  • View FileLDP-COLORSTRIP 12+24FC – Manual EN   Size: (2.63 MB) LDP-COLORSTRIP 12+24FC – Manual English
    View FileLDP-COLORSTRIP 12+24FC – Manual NL   Size: (2.57 MB) LDP-COLORSTRIP 12+24FC – Manual Nederlands
    View FileLDP-COLORSTRIP 12+24FC – Manual FR   Size: (2.66 MB) LDP-COLORSTRIP 12+24FC – Manual Français
    View FileLDP-COLORSTRIP 12+24FC – Manual DE   Size: (2.66 MB) LDP-COLORSTRIP 12+24FC – Manual Deutsch
    View FileLDP-COLORSTRIP 12+24FC – Manual ES   Size: (2.58 MB) LDP-COLORSTRIP 12+24FC – Manual Español
    View FileLDP-COLORSTRIP 24FC – EC Declaration   Size: (404.09 KB) LDP-COLORSTRIP 24FC – EC Declaration of Conformity
    View FileLDP-COLORSTRIP_ PDF leaflet Deutsch   Size: (1022.88 KB) PDF_LEAFLET_LDP-COLORSTRIP__05144_de.pdf
    View FileLDP-COLORSTRIP_ PDF leaflet English   Size: (1022.09 KB) PDF_LEAFLET_LDP-COLORSTRIP__05144_en.pdf
    View FileLDP-COLORSTRIP_ PDF leaflet Français   Size: (1 MB) PDF_LEAFLET_LDP-COLORSTRIP__05144_fr.pdf
    View FileLDP-COLORSTRIP_ PDF leaflet Nederlands   Size: (1022.54 KB) PDF_LEAFLET_LDP-COLORSTRIP__05144_nl.pdf
Application

Architectural

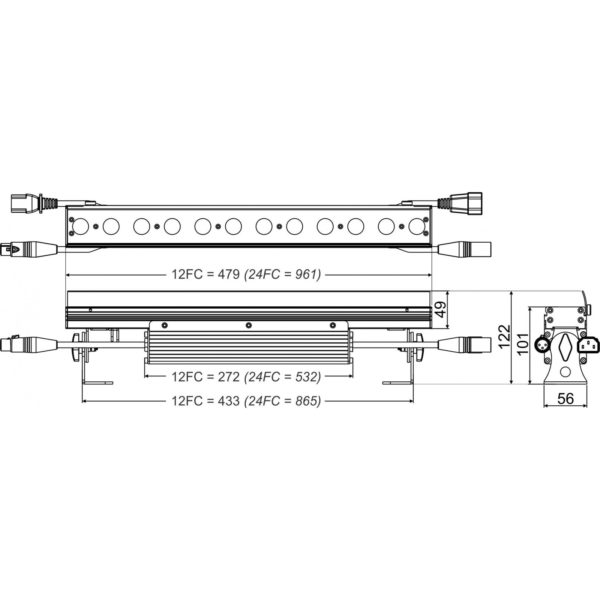

Dimensions (cm)

96.1 x 5.6 x 10.1(12.2)

Weight (kg)

3.6

Powerinput

AC 100 – 240V, 50/60Hz

Energy Label

No

Power consumption W

85

Color

white

Display

OLED

Fixation

M10

IP rating

Indoor

manual

Yes

Master/Slave

Yes

SMART-DMX

Yes

Standalone

automatic, fixed

programmable

No

upgradable software

Yes

maximum DMX channels

20

lamp socket

none

lamp

LED

colors

RGB, RGBW

mix colors

Yes

min. beam angle (°)

15

max. beam angle (°)

34

min. refresh rate (kHz)

No

max. refresh rate (kHz)

No

Input

3 pin XLR, IEC, rdm

output

3 pin XLR

Brand

BRITEQ

EANCode

5420025651448
