LDP-POWERBAR 24FC

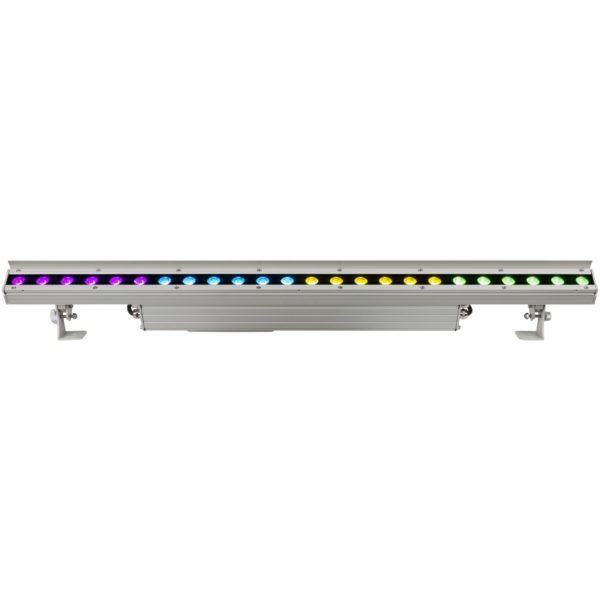

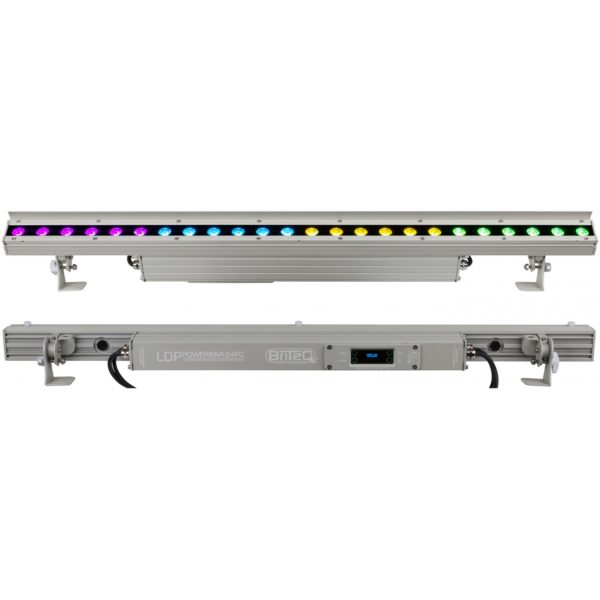

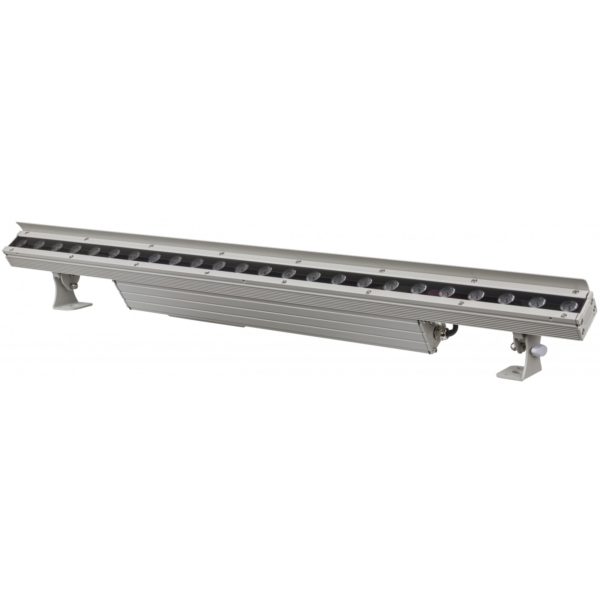

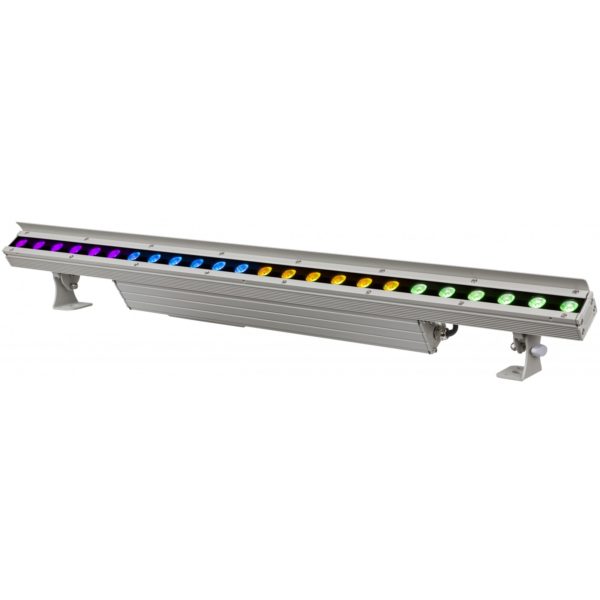

Powerful LED projector (length: 96cm) equipped with 24pcs 4W RGBW leds. The projector is divided in 4 independent sections.
SKUB05132
EANCODE: 5420025651325

Share it:
  • Powerful indoor LED projector equipped for typical “wall wash” applications.
  • Excellent light output and perfect color mixing thanks to 4Watt RGBW LEDs and high quality optics.
  • Available in 2 versions:
    • LDP-POWERBAR 12FC: 48cm long enclosure, equipped with 12 leds, divided into 2 sections.
    • LDP-POWERBAR 24FC: 96cm long enclosure, equipped with 24 leds, divided into 4 sections.
  • Beam angle : 15° vertical x 34° horizontal

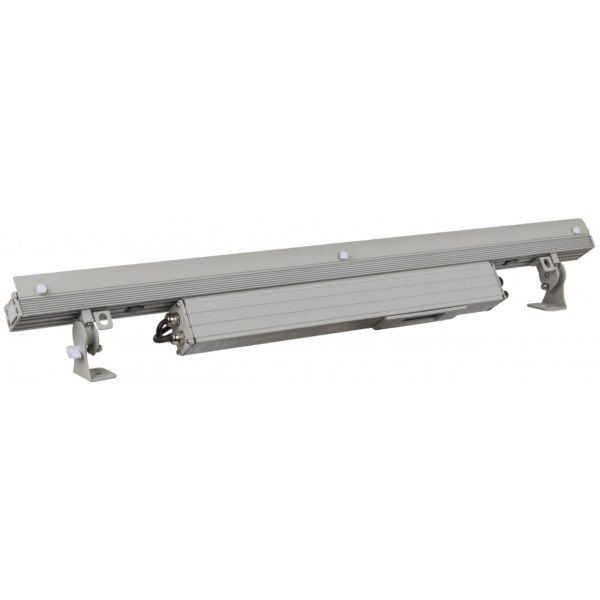

  • Elegant, extruded aluminum housing finished with tempered glass cover.

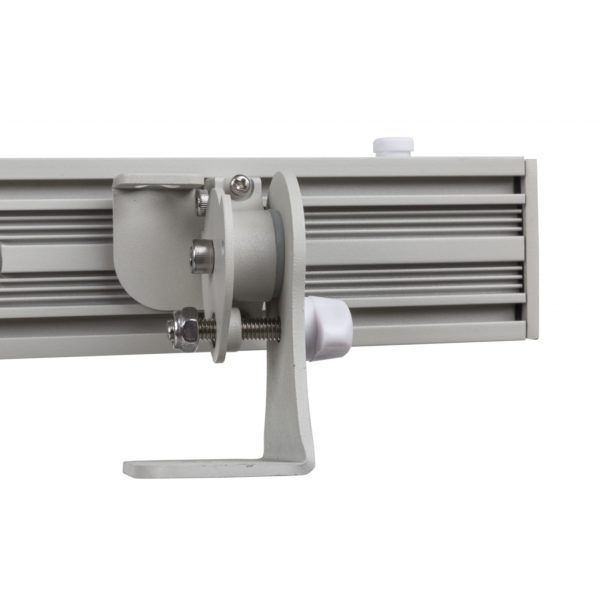

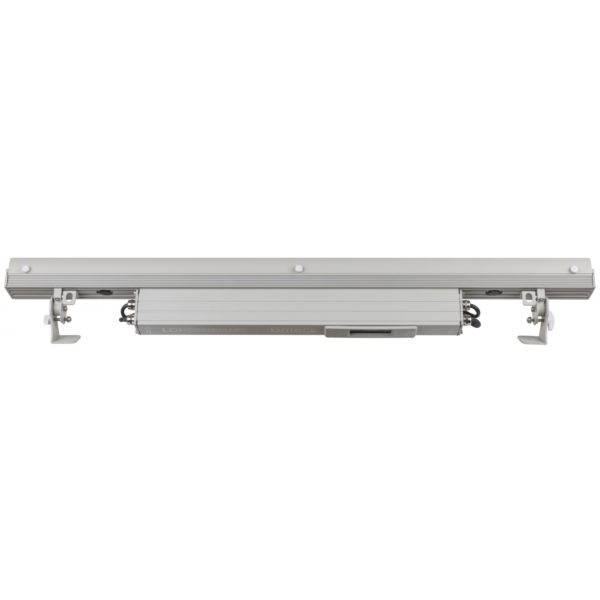

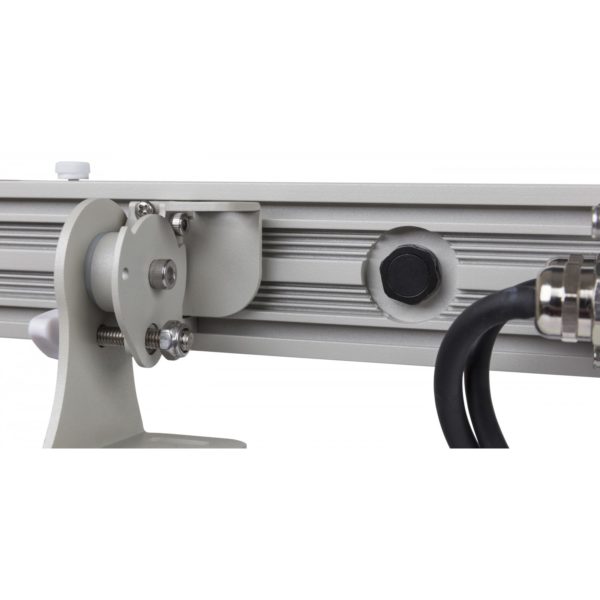

  • The discretely designed bracket can be easily adjusted in any position.
  • The included barndoor hides the LEDs and thus reduces unwanted glare.
  • Optimal thermal management for long lifespan and easy maintenance.
  • Internal power supply and DMX / LED-driver electronics for easy installation.
  • Special locking input and output connectors allow the user to link up to 16pcs of LDP-POWERBAR 24FC.
  • Perfect for use in hotels, clubs, shops, homes, … .
  • Excellent built-in programs for wonderful, ever changing, light shows.
  • Completely silent operation, thanks to natural convection cooling system.

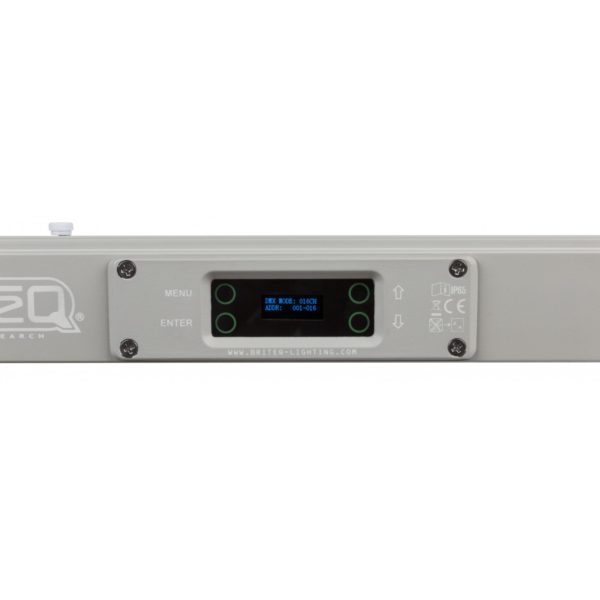

  • Alphanumeric OLED-display and touch keys to select different options of the setup menu.
  • Works in standalone, master/slave or can be selected by DMX: fading colors, static colors / chases.
  • Both models can be daisy chained and used together in master/slave mode.
  • Full DMX control with different channel modes: from 3ch up to 10ch (2 sections) or 20ch (4 sections).
  • Adaptable lamp behavior thanks to seamless dimmer speed control.
  • Four dimmer curves: linear, square, inverse square, S-curve.
  • In case of DMX failure, you can choose between blackout and freeze mode.
  • Lock function to avoid unwanted altering of the settings.
  • Special locking DMX in/outputs with adapter cables to XLR for maximum compatibility.
  • Optional cables available for easy daisy chaining (LDP-Powercable & Signal link cable)
  • View FileLDP-POWERBAR 12FC/24FC – Manual FR   Size: (2.99 MB) LDP-POWERBAR 12FC/24FC – Manual Français
    View FileLDP-POWERBAR 12FC/24FC – Manual NL   Size: (2.89 MB) LDP-POWERBAR 12FC/24FC – Manual Nederlands
    View FileLDP-POWERBAR 12FC/24FC – Manual ES   Size: (2.91 MB) LDP-POWERBAR 12FC/24FC – Manual Español
    View FileLDP-POWERBAR 12FC/24FC – Manual EN   Size: (2.74 MB) LDP-POWERBAR 12FC/24FC – Manual English
    View FileLDP-POWERBAR 12FC/24FC – Manual DE   Size: (2.98 MB) LDP-POWERBAR 12FC/24FC – Manual Deutsch
    View FileLDP-POWERBAR 24FC – EC Declaration   Size: (638.48 KB) LDP-POWERBAR 24FC – EC Declaration of Conformity
    View FileLDP-POWERBAR 24FC – IES-files   Size: (157.85 KB) LDP-POWERBAR 24FC – IES-files
    View FileLDP-POWERBAR 24FC – Firmware V1.02   Size: (602.48 KB) LDP-POWERBAR 24FC – Firmware V1.02 (2017-12-07)
    View FileLDP-POWERBAR_24 PDF leaflet Deutsch   Size: (1.22 MB) PDF_LEAFLET_LDP-POWERBAR_24_05132_de.pdf
    View FileLDP-POWERBAR_24 PDF leaflet English   Size: (1.22 MB) PDF_LEAFLET_LDP-POWERBAR_24_05132_en.pdf
    View FileLDP-POWERBAR_24 PDF leaflet Français   Size: (1.23 MB) PDF_LEAFLET_LDP-POWERBAR_24_05132_fr.pdf
    View FileLDP-POWERBAR_24 PDF leaflet Nederlands   Size: (1.22 MB) PDF_LEAFLET_LDP-POWERBAR_24_05132_nl.pdf
Application

Architectural, DJ & Club, Stage & Rental

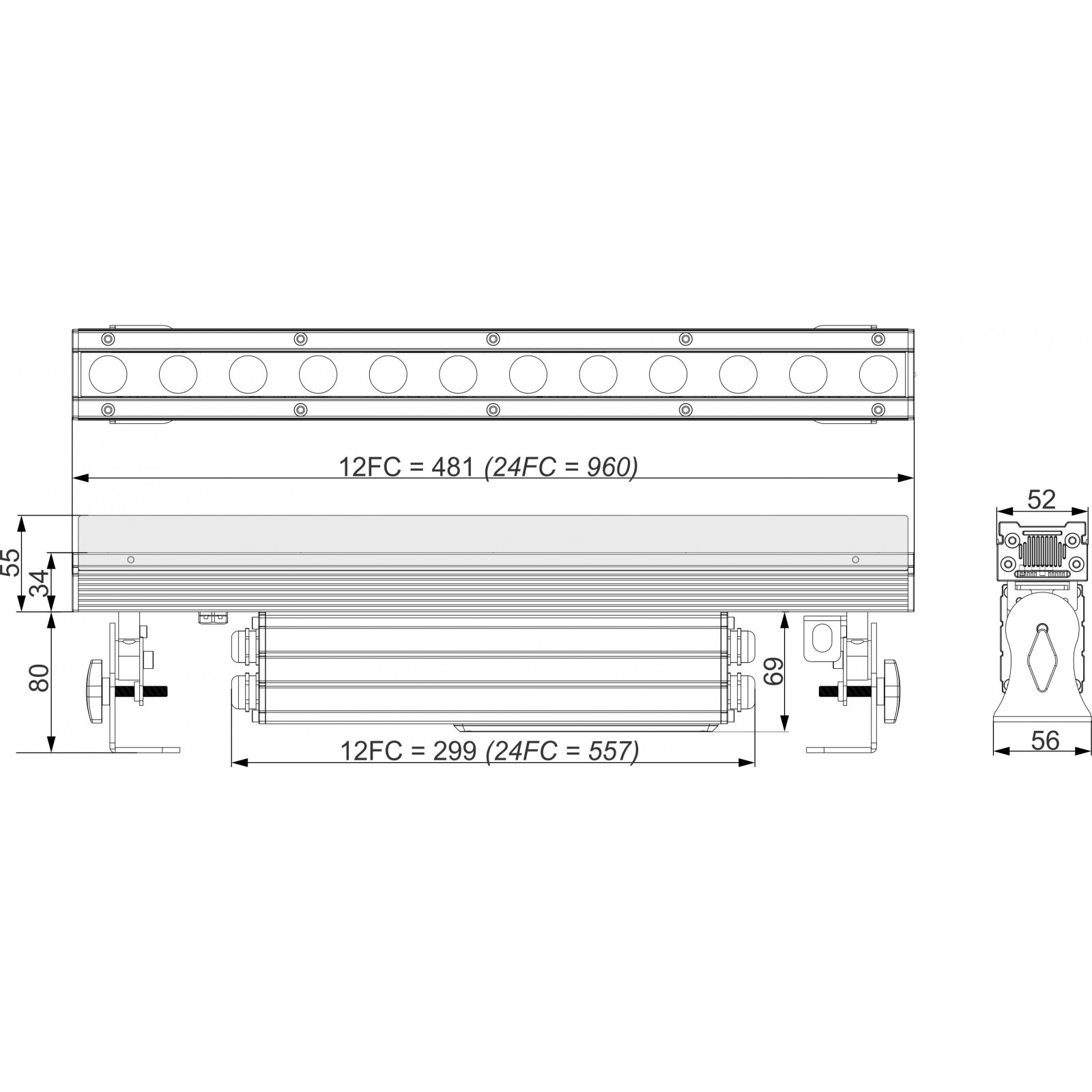

Dimensions (cm)

96 x 5,6 x 11,4/13,5 cm

Weight (kg)

5.02

Powerinput

AC 100 – 240V, 50/60Hz

Energy Label

No

Power consumption W

85

Color

white

Brand

BRITEQ

EANCode

5420025651325
