- Standalone chain hoist motor controller.
- Controls up to 4 motors in standalone operation

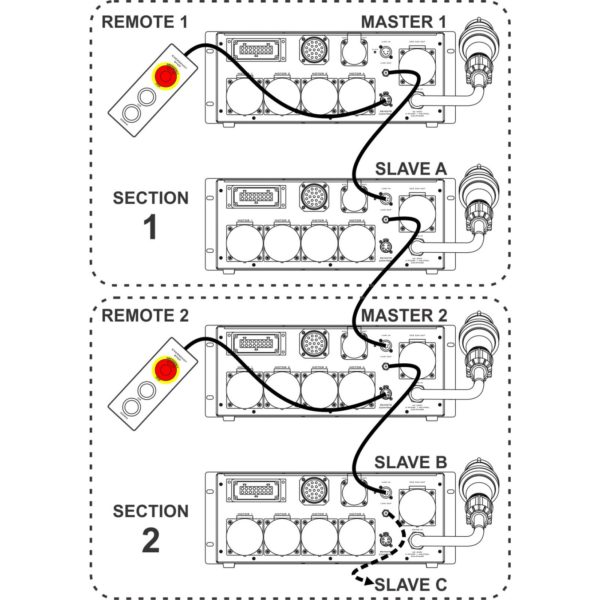

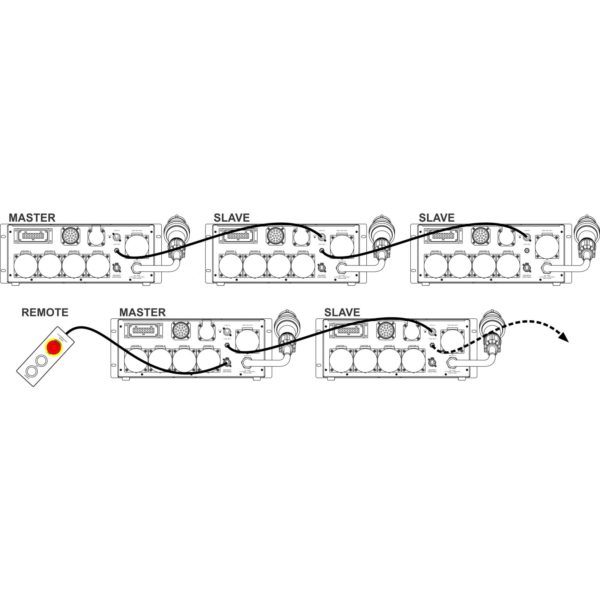

- Several units can be linked in master/slave using the link in/out on the back panel:
- Easy control for a larger number of chain hoists.
- Simultaneous hoist control using the UP/DOWN buttons on the master controller.
- Centralized Emergency stop on the master controller.
- “Slave” indicator led.
- Manual phase inversion switch for each output.
- Choice of different outputs for maximum flexibility (rental companies!):
- 4x individual CEE16 4pole 16A outputs

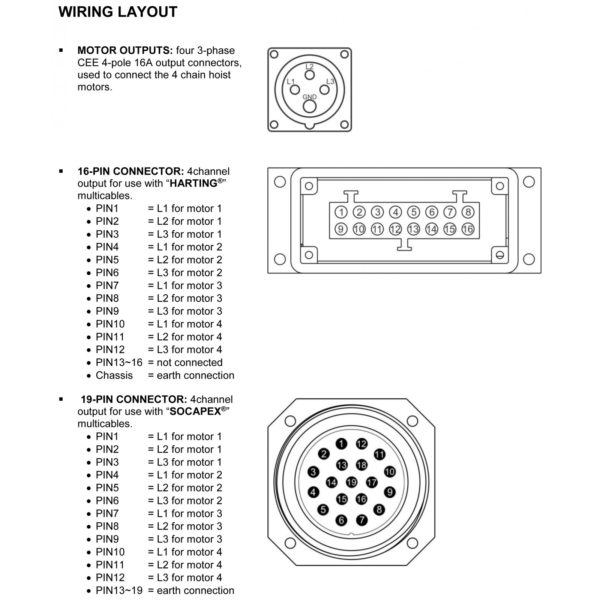

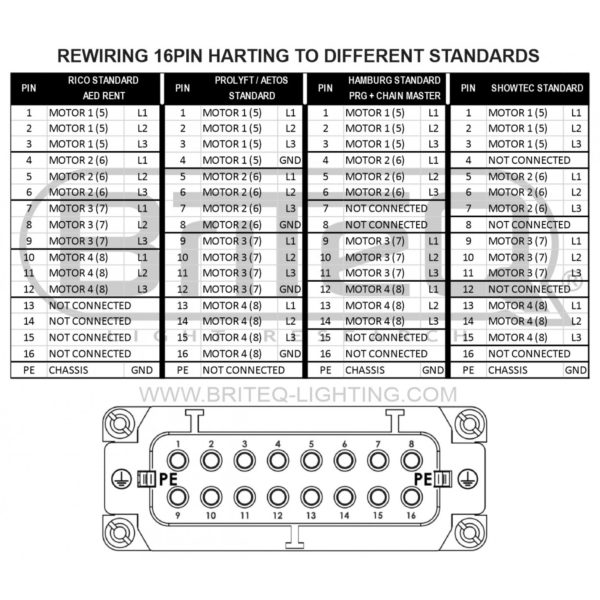

- 1x 16PIN multichannel industrial rectangular connector, Harting® compatible
- 1x 19PIN multichannel industrial round connector, Socapex® compatible
- 1x earthed 16A mains outlet: auxiliary output for all kinds of use.
- Remote control input (XLR) with led indicator to connect the [RICO-REMOTE] (optional, order code: 4650).
- Phase indicators to easily check if the 3phases are available.
- 32A 4pole circuit breaker protects ALL outputs, including the 32A output to the next unit. In case of emergency all 3 phases AND the neutral are disconnected.
- Two C16 (16A – 1P+N) 2-POLE automatic circuit breakers for control circuit + auxiliary output.
- Mains input cable (3x 32A, 5wire), equipped with CEE (3P+N+E) 32A inlet plug
- CEE (3P+N+E) outlet socket (3x 32A, 5wire) for bypass
- Extremely robust 19″/4U metal housing.
- Designed and build in Europe to the highest international safety standards!
-
RICO-V4 – Manual English V1.1 Size: (1.34 MB)
RICO-V4 – Manual English V1.1 RICO-V4 – Manual Deutsch V1.1 Size: (1.36 MB)
RICO-V4 – Manual Deutsch V1.1 RICO-V4 – Manual Español V1.1 Size: (1.34 MB)
RICO-V4 – Manual Español V1.1 RICO-V4 – Manual Français V1.1 Size: (1.36 MB)
RICO-V4 – Manual Français V1.1 RICO-V4 – Manual Nederlands V1.1 Size: (1.3 MB)
RICO-V4 – Manual Nederlands V1.1 RICO-V4 – EC Declaration Size: (219.53 KB)
RICO-V4 – EC Declaration of Conformity RICO-V4 PDF leaflet Deutsch Size: (1.38 MB)
PDF_LEAFLET_RICO-V4_04649_de.pdf RICO-V4 PDF leaflet English Size: (1.38 MB)
PDF_LEAFLET_RICO-V4_04649_en.pdf RICO-V4 PDF leaflet Français Size: (1.38 MB)
PDF_LEAFLET_RICO-V4_04649_fr.pdf RICO-V4 PDF leaflet Nederlands Size: (1.38 MB)
RICO-V4
4 channel direct control chain hoist motor controller with
separate UP/DOWN-controls and master/slave linking.
SKU: B04649
EANCODE: 5420025646499
Add to Wishlist
Add to Compare
Share it:
Application | Stage & Rental, Theatre |
---|---|

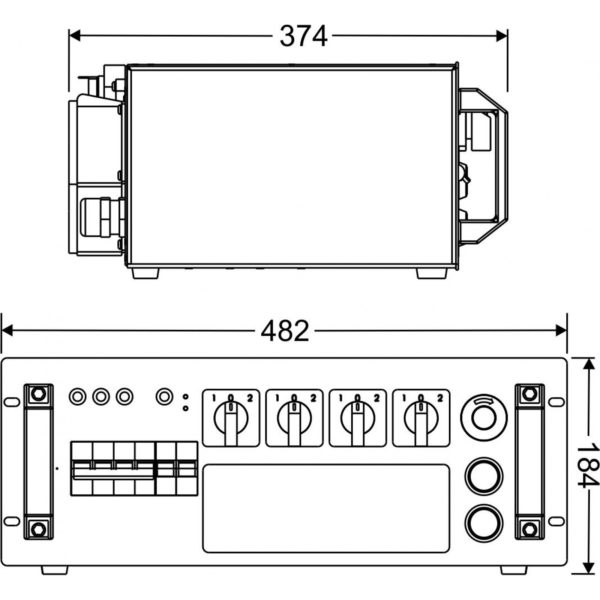

Dimensions (cm) | 48,2 x 18,4 x 37,4 cm |
Weight (kg) | 13.5 |
Color | black |
tube Ø | No |
truss type | other |
Brand | BRITEQ |
EANCode | 5420025646499 |
