STAGE BEAMER FC – OUTDOOR

Very powerful 14x5W OSRAM RGBW LED PROJECTOR for outdoor use – IP65
SKU: B05511
EANCODE: 5420025655118
Add to Wishlist
Add to Compare
Add to quote
Share it:
  • Extra “16 bit TOUR”-mode with 16 bit colormixing (R, G, B en W controlled by 2 channels : coarse and fine).
  • Very powerful RGBW LED projector based on 14 quadri-color 5W OSRAM LEDs:
    • Unwanted RGBW shadows are completely eliminated
    • Perfect and evenly spread color mixing, even at short range

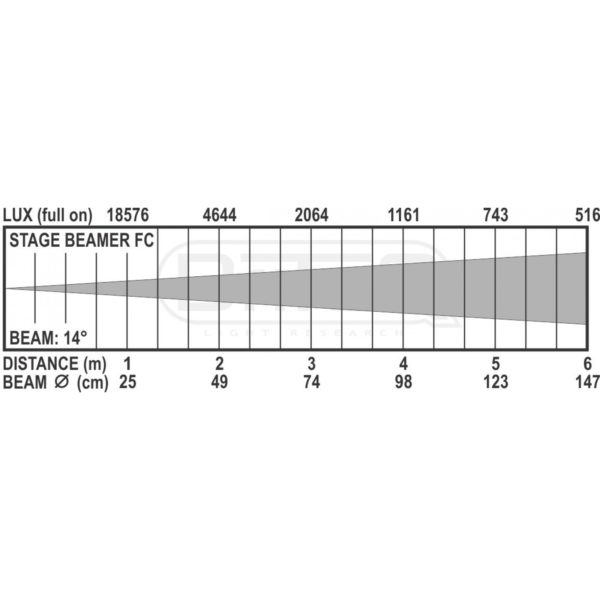

    • Beam angle: 14°
    • IP65
  • This LED projector is your first choice :To light up small, medium and large stages but also perfect for architectural lighting.
  • Perfect alternative for traditional PAR64 projectors: only 65Watt power consumption at full output and no need for heavy dimmer packs!
  • Different DMX operation modes: 4, 5, 6, 7, 9, 10 and 15ch
  • Thanks to all kinds of special features this projector is the choice of professional light designers:
    • Color temperature presets 3200K ~ 10.000K
    • RGBW Calibration
    • Different dimmer curves
    • ID-addressing
    • Recall custom programs by DMX

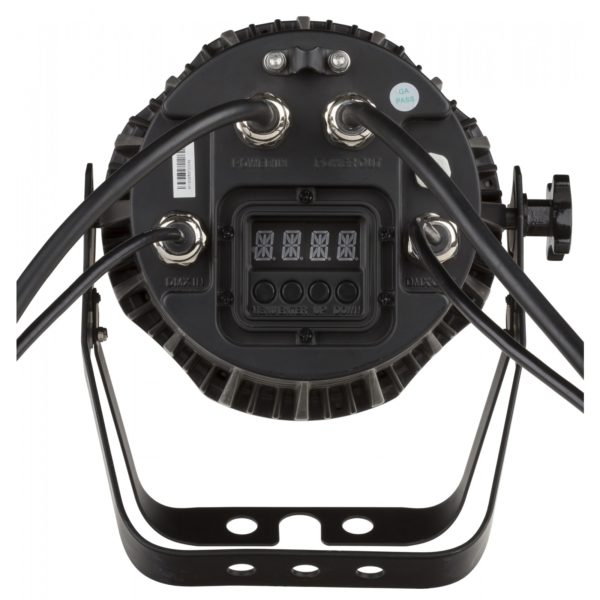

    • Menu driven LED-display with password protection on the rear panel
    • Tempered glass lens protection
    • Special air-valve keeps humid outside: no condense inside the projector!
  • The 1200Hz LED scan rate makes it also a perfect choice in TV studios (no interferences with TV-cameras)
  • Completely silent: the projector is cooled by natural air convection so no noisy fans are needed!
  • The lightweight aluminium housing uses a double hanging bracket so it can also be used as floor projector.
  • NOTE: this product has IP65 rating for outdoor installation under normal conditions (not exposed to seawater).
View FileSTAGE BEAMER FC – OUTDOOR – Manual   Size: (5.72 MB) STAGE BEAMER FC – OUTDOOR – Manual
View FileSTAGE BEAMER FC – OUTDOOR – EC declaration   Size: (836.15 KB) STAGE BEAMER FC – OUTDOOR – EC declaration
View FileSTAGE BEAMER FC – IES photometric files   Size: (127.33 KB) STAGE BEAMER FC – IES photometric files
View FileSTAGE_BEAMER_FC PDF leaflet Deutsch   Size: (1.3 MB) PDF_LEAFLET_STAGE_BEAMER_FC_B05511_de.pdf
View FileSTAGE_BEAMER_FC PDF leaflet English   Size: (1.3 MB) PDF_LEAFLET_STAGE_BEAMER_FC_B05511_en.pdf
View FileSTAGE_BEAMER_FC PDF leaflet Français   Size: (1.3 MB) PDF_LEAFLET_STAGE_BEAMER_FC_B05511_fr.pdf
View FileSTAGE_BEAMER_FC PDF leaflet Nederlands   Size: (1.3 MB) PDF_LEAFLET_STAGE_BEAMER_FC_B05511_nl.pdf
Application

Architectural, Stage & Rental, Theatre
Dimensions (cm)

24.5 x 20.5 x 24.5
Weight (kg)

4.96
Powerinput

AC 100 – 240V, 50/60Hz
Energy Label

No
Power consumption W

65
Color

black
Display

LED
Fixation

M10
IP rating

outdoor
manual

Yes
Master/Slave

Yes
SMART-DMX

No
Standalone

automatic, fixed
programmable

No
upgradable software

No
maximum DMX channels

15
lamp socket

No
lamp

LED
colors

RGB, RGBW
mix colors

Yes
min. refresh rate (kHz)

1.2
max. refresh rate (kHz)

1.2
Input

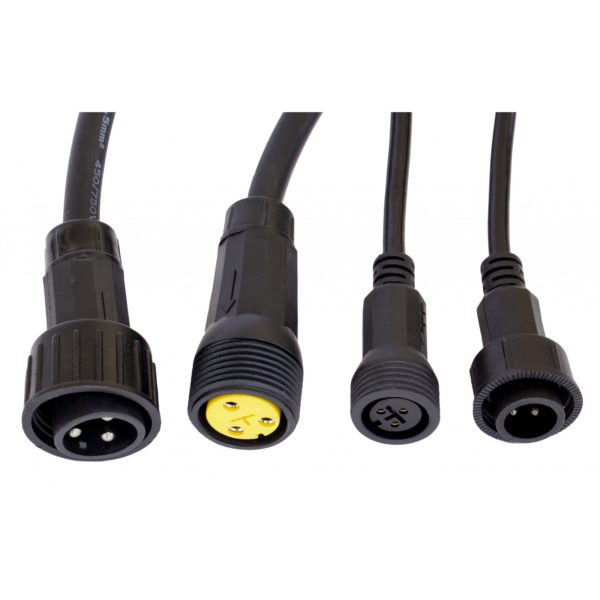

3 pin XLR, ip-powerlink connector
output

3 pin XLR, ip-powerlink connector
Brand

BRITEQ
EANCode

5420025655118
