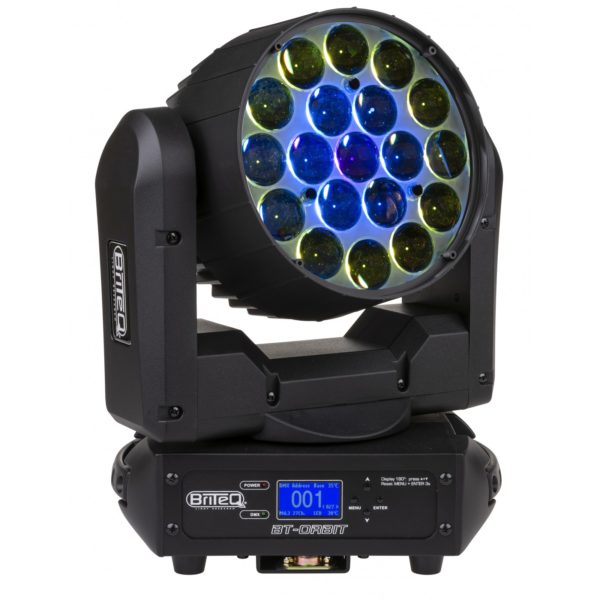

- This successor of the extremely popular BT-W19L10 ZOOM is ready to serve stages, rental jobs and discotheques all over the planet!

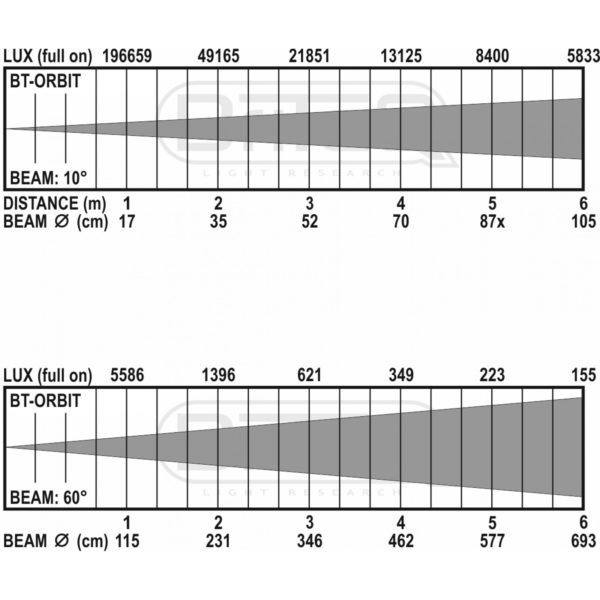

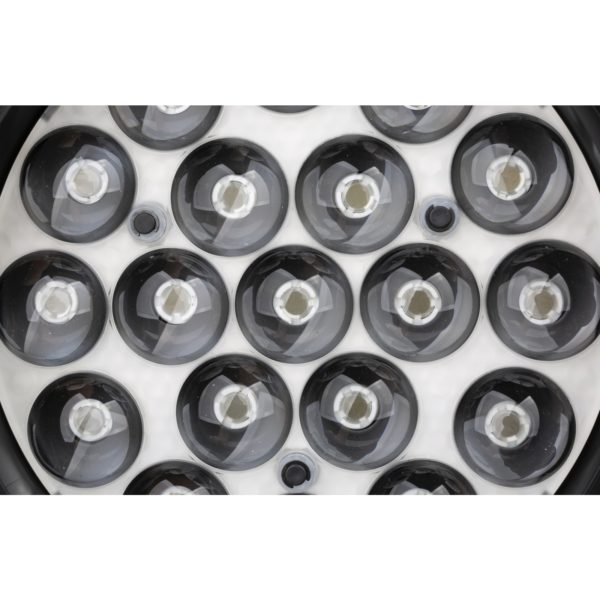

- The 19pcs 4in1 RGBW 15W leds, combined with redesigned optics increase the output of the original BT-W19L10 ZOOM by 65% !!! (8400 lux @5m /10°)
- Extremely bright beam with 3 individually controlled LED-rings and 10° to 60° zoom with perfect color mixing for maximum creativity.
- Prepared for wireless DMX: just plug-in an optional WTR-DMX DONGLE ! (Briteq® order code: 4645)
- Perfect color consistency and extremely smooth dimming from 0% to maximum output!
- High speed pan/tilt movements with 16bit resolution assure dynamic show programming.
- Calibrated color macros for easy and fast show programming
- Two different 14ch DMX channel modes which are 100% compatible with the BT-W19L10 ZOOM.
- Additional 27ch DMX channel mode for full 3 LED-ring control, including all kinds of effect macros.
- Automatic X/Y re-positioning

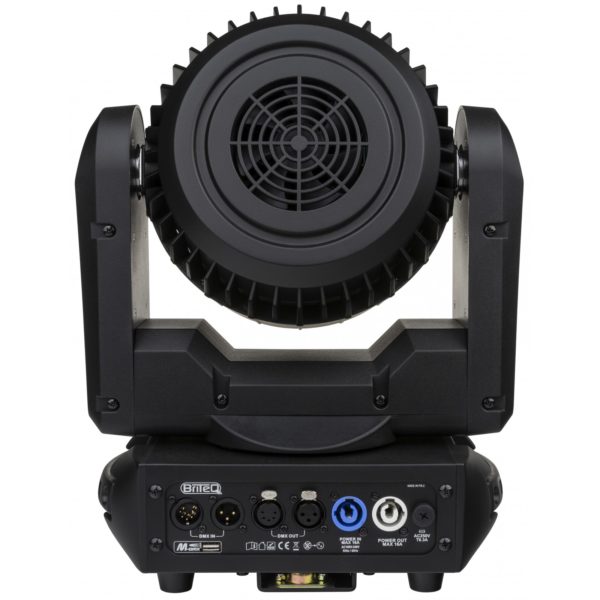

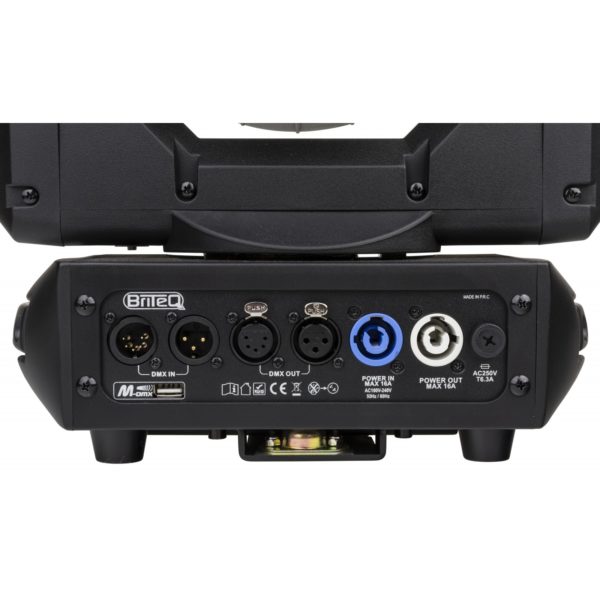

- Procon in/outputs: easy daisy chaining of several units up to 16A.
- 3pin & 5pin DMX in/outputs for maximum flexibility in a professional environment
- Easy firmware updates keep your machine up-to-date at all times (optional firmware updater needed)

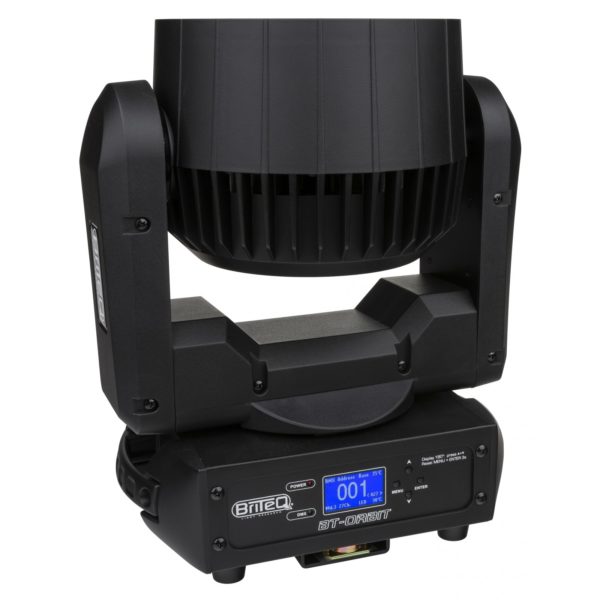

- The LCD-display assures easy navigation in the different setup menus
- High efficiency and low power consumption, only 290W
- Noise level at 1m (no movement): 30.8 dB
- Noise level at 1m (with pan/tilt movement): 35.7 dB
- Equipped with omega brackets for fast
-
BT-ORBIT – Manual English Size: (1.8 MB) BT-ORBIT – Manual English BT-ORBIT – Manual Deutsch Size: (2.02 MB) BT-ORBIT – Manual Deutsch BT-ORBIT – Manual Español Size: (2.02 MB) BT-ORBIT – Manual Español BT-ORBIT – Manual Français Size: (1.73 MB) BT-ORBIT – Manual Français BT-ORBIT – Manual Nederlands Size: (2.02 MB) BT-ORBIT – Manual Nederlands BT-ORBIT – EC declaration Size: (861 KB) BT-ORBIT – EC declaration of conformity BT-ORBIT Firmware update V1.5 Size: (318.99 KB) BT-ORBIT Firmware update V1.5 (2018-03-21) BT-ORBIT PDF leaflet Deutsch Size: (1.38 MB) PDF_LEAFLET_BT-ORBIT_04423_de.pdf BT-ORBIT PDF leaflet English Size: (1.38 MB) PDF_LEAFLET_BT-ORBIT_04423_en.pdf BT-ORBIT PDF leaflet Français Size: (1.38 MB) PDF_LEAFLET_BT-ORBIT_04423_fr.pdf BT-ORBIT PDF leaflet Nederlands Size: (1.38 MB) PDF_LEAFLET_BT-ORBIT_04423_nl.pdf
BT-ORBIT
Successor of the extremely popular BT-W19L10 ZOOM with increased (65%) output!
SKU: B04423
EANCODE: 5420025644235
Add to Wishlist
Add to Compare
Share it:
Application | DJ & Club, Stage & Rental, Theatre |
---|---|
Dimensions (cm) | 39.5 x 32.5 x 22.5 cm |
Weight (kg) | 9.2 |
Powerinput | AC 100 – 240V, 50/60Hz |
Energy Label | No |
Power consumption W | 290 |
Color | black |
Display | LCD |
Fixation | optional omega bracket |
IP rating | indoor |
manual | Yes |
Master/Slave | Yes |
input | 3 pin XLR, 5 pin XLR, PowerCon®, usb, wifi optional |
output | 3 pin XLR, 5 pin XLR, PowerCon® |
Brand | BRITEQ |
EANCode | 5420025644235 |
