HALO FRESNEL 60W

HALO Fresnel led series is the result of a Sagitter project, which can replace the most common incandescent theatre projectors with a product boasting low power consumption and the same lighting efficiency as the most common incandescent sources. The combination of a cutting edge power supply system and a next generation 3200K white COB LED source, makes the projector suitable for stages of any size. The optics equipment features the ability to manually modify the projection angle with a high precision zoom system.

Optic system

• Beam Angle: manual zoom from 15° to 55°
• Luminous flux: 1490lux @ 5mt (15°)
• Luminous flux: 530lux @ 5mt (55°)

Color system

• LED source COB warm white 3200K

Effects

• Linear dimmer 0-100%
• Strobe: electronic 1-20 flashes/s with adjustable speed

Control and programming

• 1 DMX configurations available: 2 channels
• Protocol USITT DMX 512
• Manual dimmer mode

Structure and programming

• High resistance plastic housing
• Red LED display

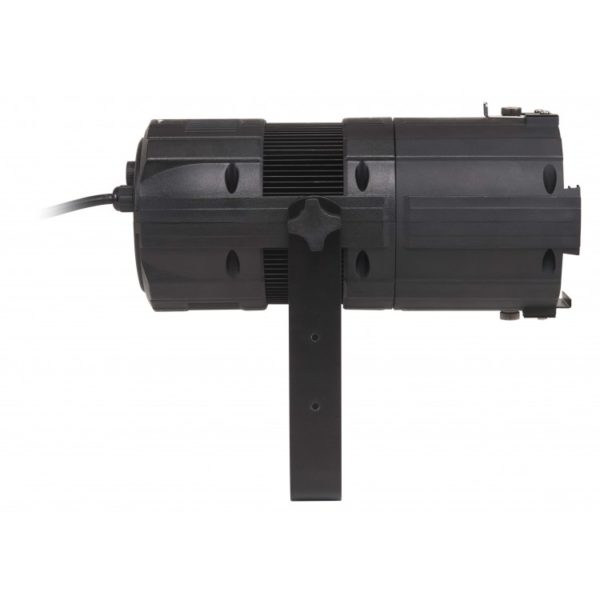

• Mounting points: single bracket

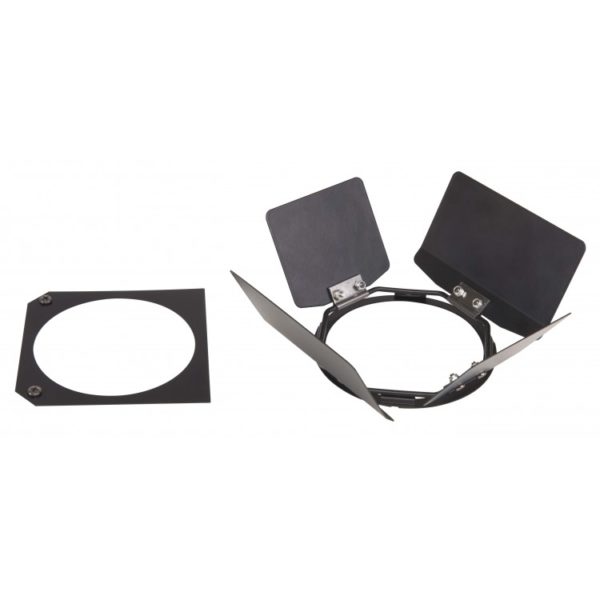

• Rotating barndoor with “safety cable” included
• XLR 3-poles DMX IN/OUT connection
• IP rating: IP20
• Controlled forced air fan cooling system “low noise”

Power supply

• Input Voltage: AC~100-240V, 50/60 Hz
• Switching power supply unit
• Power consumption: 70W
• IN/OUT power connection with PowerCON sockets
• Power supply cable 1mt included
• Max 4 pcs linkable @ 240V
