- Powerful indoor LED projector equipped for typical “wall wash” applications.
- Fully compatible with the IP65 outdoor LDP-POWERBAR
- Excellent light output and perfect color mixing thanks to 4Watt RGBW LEDs and high quality optics.
- 96cm long enclosure, equipped with 24 leds, divided into 4 sections.
- Elegant, extruded aluminum housing.
- The discretely designed bracket can be easily adjusted in any position.
- The included barndoor hides the LEDs and thus reduces unwanted glare.
- Optimal thermal management for long lifespan and easy maintenance
- Internal power supply and DMX / LED-driver electronics for easy installation.
- IEC-C13/C14 and XLR-3pin input / output connectors allow to link up to 16pcs of LDP-COLORSTRIP 24FC.
- Perfect for use in hotels, clubs, shops, homes, …
- Excellent built-in programs for wonderful, ever changing, light shows.
- Completely silent operation, thanks to natural convection cooling system.
- Alphanumeric OLED-display and backlit touch keys to select different options of the setup menu.
- Works in standalone, master/slave or can be selected by DMX: fading colors, static colors / chases
- Both models can be daisy chained and used together in master/slave mode.
- Full DMX control with different channel modes: from 3ch up to 20ch (4 sections)
- Adaptable lamp behavior thanks to seamless dimmer speed control.
- Four dimmer curves: linear, square, inverse square, S-curve
- In case of DMX failure, you can choose between blackout and freeze mode.
- Lock function to avoid unwanted altering of the settings.
-
LDP-COLORSTRIP 12+24FC – Manual EN Size: (2.63 MB)LDP-COLORSTRIP 12+24FC – Manual English
LDP-COLORSTRIP 12+24FC – Manual NL Size: (2.57 MB)LDP-COLORSTRIP 12+24FC – Manual Nederlands
LDP-COLORSTRIP 12+24FC – Manual FR Size: (2.66 MB)LDP-COLORSTRIP 12+24FC – Manual Français
LDP-COLORSTRIP 12+24FC – Manual DE Size: (2.66 MB)LDP-COLORSTRIP 12+24FC – Manual Deutsch
LDP-COLORSTRIP 12+24FC – Manual ES Size: (2.58 MB)LDP-COLORSTRIP 12+24FC – Manual Español
LDP-COLORSTRIP 24FC – EC Declaration Size: (404.09 KB)LDP-COLORSTRIP 24FC – EC Declaration of Conformity
LDP-COLORSTRIP_ PDF leaflet Deutsch Size: (1022.88 KB)PDF_LEAFLET_LDP-COLORSTRIP__05144_de.pdf
LDP-COLORSTRIP_ PDF leaflet English Size: (1022.09 KB)PDF_LEAFLET_LDP-COLORSTRIP__05144_en.pdf
LDP-COLORSTRIP_ PDF leaflet Français Size: (1 MB)PDF_LEAFLET_LDP-COLORSTRIP__05144_fr.pdf
LDP-COLORSTRIP_ PDF leaflet Nederlands Size: (1022.54 KB)PDF_LEAFLET_LDP-COLORSTRIP__05144_nl.pdf
LDP-COLORSTRIP 24FC

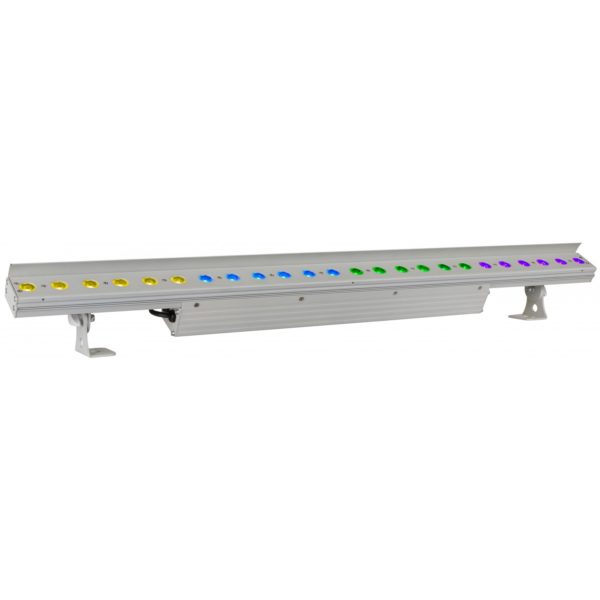

96cm long enclosure, equipped with 24pcs 4W RGBW-leds, divided into 4 sections.
| Application | Architectural |
|---|---|

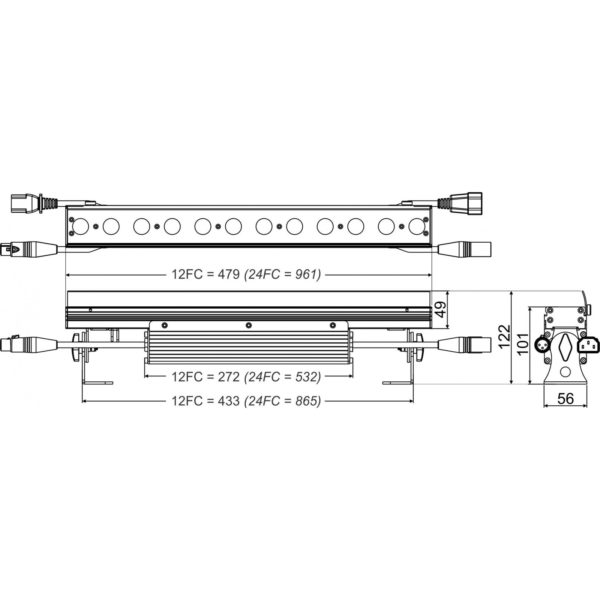

| Dimensions (cm) | 96.1 x 5.6 x 10.1(12.2) |
| Weight (kg) | 3.6 |
| Powerinput | AC 100 – 240V, 50/60Hz |
| Energy Label | No |
| Power consumption W | 85 |
| Color | white |
| Display | OLED |
| Fixation | M10 |
| IP rating | Indoor |
| manual | Yes |
| Master/Slave | Yes |
| SMART-DMX | Yes |
| Standalone | automatic, fixed |
| programmable | No |
| upgradable software | Yes |
| maximum DMX channels | 20 |
| lamp socket | none |
| lamp | LED |
| colors | RGB, RGBW |
| mix colors | Yes |
| min. beam angle (°) | 15 |
| max. beam angle (°) | 34 |
| min. refresh rate (kHz) | No |
| max. refresh rate (kHz) | No |
| Input | 3 pin XLR, IEC, rdm |
| output | 3 pin XLR |
| Brand | BRITEQ |
| EANCode | 5420025651448 |
