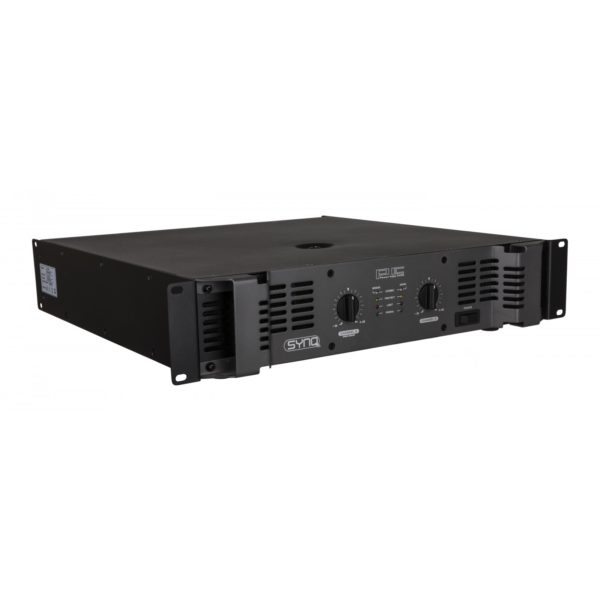

PE-2400


The Power Edge ‘Class H’ amplifiers are designed for pure power 2x 450Wrms / 4ohm

SKUB00263
EANCODE5420025602631

Share it:
  • The Power Edge ‘Class H’ amplifiers are designed for pure power. Thanks to the big power reserve, excellent limiters and protections they can be used in all kinds of different applications such as discotheques, clubs, mobile audio, PA, rental, theater, …
  • Very compact housing, only 2U high
  • PE-series can be driven in 2 Ohm
  • Power (1kHz, THD+N<0,1%) :
    •   In Stereo mode : from 2x 300Wrms in 8Ω until 2x 540 Wrms in 2Ω.
    •   In Bridged mode : from 1x 900 in 8Ω until 1x 1080W in 4Ω.
  • Soft start
  • Very efficient cooling using variable speed fans
  • Automatic current limiter
  • Short circuit protection
  • DC fault protection
  • High temperature protection
  • Overload protection
  • Can be used in stereo, bridge and mono mode
  • Balanced inputs with combo connectors
  • Balanced XLR signal outputs for daisy chaining
  • Input sensitivity correction: 0,775V / 1,0V / 1,44V
  • 3 Speakon outputs.
Application

Commercial, DJ & Club, Stage & Rental

Series

PE

Dimensions (cm)

48.3 x 8.8 x 42.5 cm

Weight (kg)

16.8

Color

black

Powerinput

AC 240V, 50Hz

Energy Label

No

Display

none

Fixation

19" rack mountable

RU

2U

IP rating

indoor

amplifier class

H

min. frequency (Hz)

20

max. frequency (Hz)

20000

damping factor (>...)

300

max. output channels

2

Wrms 2Ω stereo, per channel

540

Wrms 4Ω stereo, per channel

450

Wrms 8Ω stereo, per channel

300

Wrms 4Ω bridge

1080

Wrms 8Ω bridge

900

functions

bridge mode

input

3 pin XLR, jack, Schuko CEE 7/7

output

3 pin XLR, speakon

Brand

SYNQ

EANCode

5420025602631
