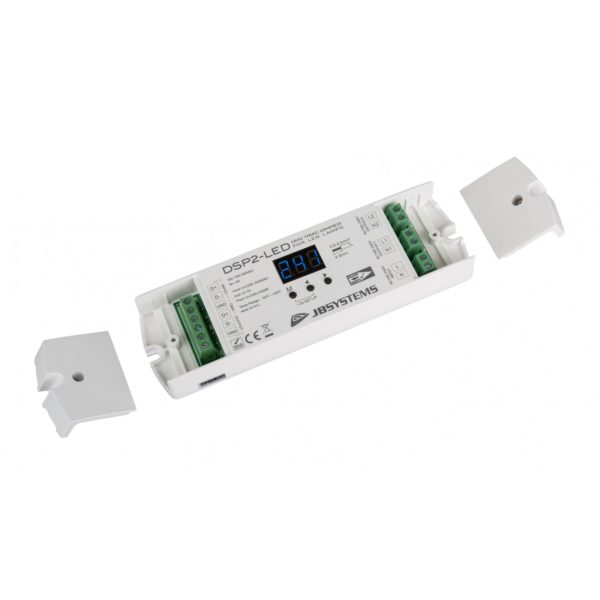

DSP2-LED

Triac dim / switch pack: 2 DMX channels for 100-240Vac LED-lamps and other small loads
SKU: B04662
EANCODE: 5420025646628



Add to Wishlist
Add to Compare
Add to quote
Share it:
  • This 2 channel mosfet dimmer works perfectly with small loads like dimmable LED-lamps & small halogen lamps.
  • Excellent dimming of 100-240Vac dimmable LED lamps and LED-drivers with loads down to only 2watt!
  • Forward- / Reverse-phase control dimmer for a wide lamp compatibility!
  • The minimum dimmer brightness from 1% to 40% can be programmed to avoid flicker.
  • Different operating modes:
    • DMX-control: 1 or 2 DMX-channels with possibility for remote RDM-addressing
    • Stand-alone dimmer: with up to 8 dimmer presets, no DMX needed.
    • Stand-alone dynamic: 4 different modes with brightness and speed setting
  • Small dimensions for easy “blind” installation in cabinets or in false ceilings!
  • Maximum output: 2x 1A (2x 240W / 240Vac or 2x 120W / 120Vac)
  • Remark: only to be used with dimmable LED lamps, non-dimmable LED lamps can cause technical failure.
  • View FileDSP2-LED – Manual V1.0 EN   Size: (1.04 MB) DSP2-LED – Manual Version 1.0 English
    View FileDSP2-LED – EC Declaration   Size: (230.16 KB) DSP2-LED – EC Declaration of Conformity
    View FileDSP2-LED PDF leaflet Deutsch   Size: (1.18 MB) PDF_LEAFLET_DSP2-LED_B04662_de.pdf
    View FileDSP2-LED PDF leaflet English   Size: (1.18 MB) PDF_LEAFLET_DSP2-LED_B04662_en.pdf
    View FileDSP2-LED PDF leaflet Français   Size: (1.18 MB) PDF_LEAFLET_DSP2-LED_B04662_fr.pdf
    View FileDSP2-LED PDF leaflet Nederlands   Size: (1.18 MB) PDF_LEAFLET_DSP2-LED_B04662_nl.pdf
Application

Architectural, Commercial
Dimensions (cm)

17 x 5 x 2.3
Weight (kg)

0.13
Powerinput

AC 100 – 240V, 50/60Hz
Energy Label

No
Brand

JB SYSTEMS
EANCode

5420025646628
