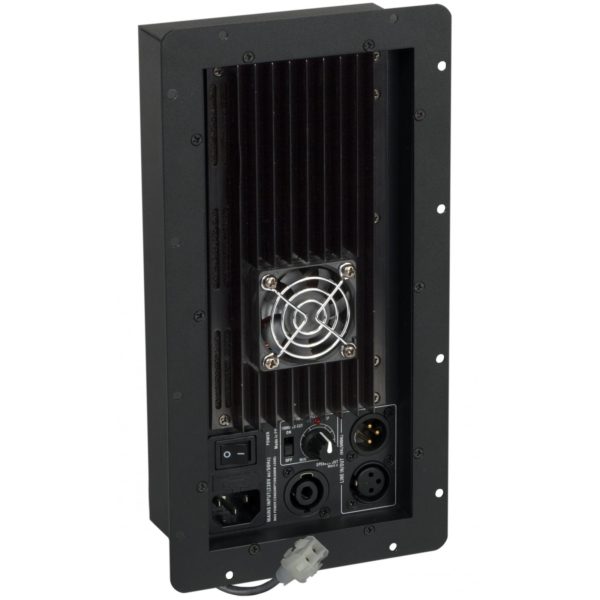

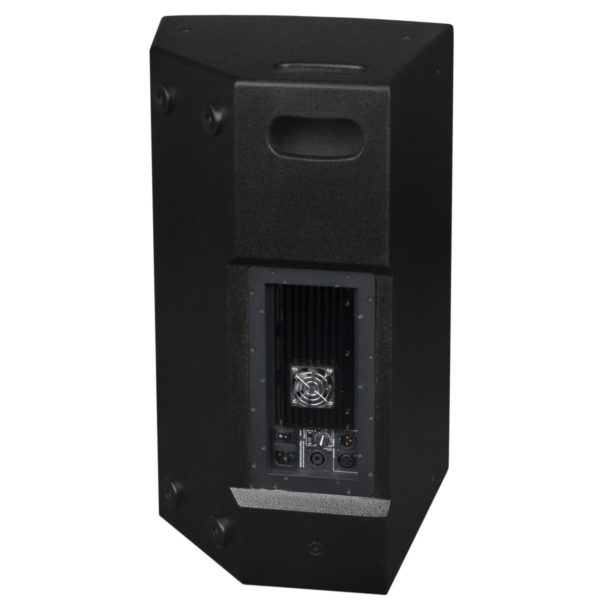

- Class-D amplifier module for installation inside the VIBE8 Mk2, VIBE10 Mk2 & VIBE12 Mk2 speakers
- All you need is a screwdriver and 5 minutes of your time to make the transformation, no technical skills required!
- High output power: 300Wrms @ 8ohm ~ 500Wrms @ 4ohm
- Balanced / unbalanced line input/output (XLR) with volume control.
- 100Hz low-cut filter, used to cut low frequencies to the speaker cabinet when used in combination with an active subwoofer.
- Speakon output for optional passive 8ohm cabinet. (preferable same model)
- IEC input mains connector with integrated switch.
-
AVM Manual Size: (2.86 MB) AVM Manual EN / FR / NL / DE / ES / PT AVM-1 PDF leaflet Deutsch Size: (843.17 KB) PDF_LEAFLET_AVM-1_B00240_de.pdf AVM-1 PDF leaflet English Size: (842.84 KB) PDF_LEAFLET_AVM-1_B00240_en.pdf AVM-1 PDF leaflet Français Size: (844.36 KB) PDF_LEAFLET_AVM-1_B00240_fr.pdf AVM-1 PDF leaflet Nederlands Size: (842.58 KB) PDF_LEAFLET_AVM-1_B00240_nl.pdf
AVM-1
Application | DJ & Club, Stage & Rental |
---|---|
Series | VIBE |
Dimensions (cm) | 27.5 x 14.5 x 7.2 cm |
Weight (kg) | 2.39 |
Color | black |
Powerinput | AC 240V, 50Hz |
Energy Label | No |
Power consumption W | 630 |
Display | none |
IP rating | indoor |
amplifier class | D |
min. frequency (Hz) | 20 |
max. frequency (Hz) | 20000 |
frequency range | … Hz – … Hz |
S/N ratio (> dB) | 86 |
damping factor (>...) | 320 |
Wrms 4Ω stereo, per channel | 500 |
Wrms 8Ω stereo, per channel | 300 |
functions | limiter |
input | 3 pin XLR, IEC |
output | 3 pin XLR, speakon |
Brand | JB SYSTEMS |
EANCode | 5420025602402 |
